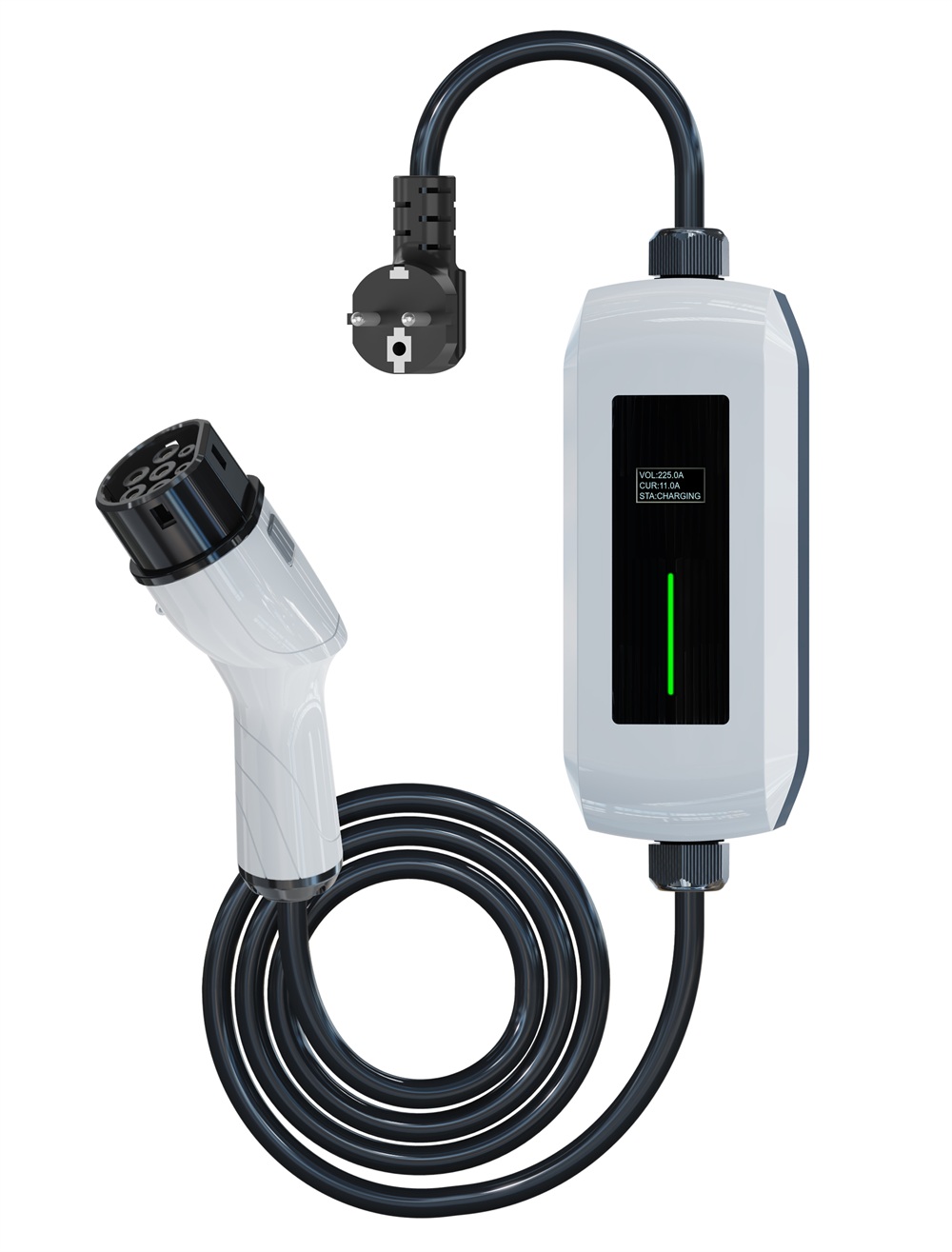

Z7A Type 2 Portable EV Charger 3.5kW 7kW 11kW 22kW AC Level 2 with WiFi App Control
Z7A Series Type 2 portable EV charger delivers AC Level 2 charging at 3.5kW, 7kW, 11kW or 22kW. It supports 16A/32A single- and three-phase supply, Type 2 IEC 62196-2 connectors, WiFi and Bluetooth app control, a 1.3″ OLED display, IP55 protection and a 5 m cable — a practical mobile charging solution for workshops and fleets.
Product Overview
The Z7A Series is a portable AC Level 2 EV charger built around the IEC 62196-2 Type 2 connector. It is available with rated power levels of 3.5 kW, 7 kW, 11 kW and 22 kW, drawing from 230Vac±15% single-phase or 400Vac±15% three-phase supply with a rated current of 16A or 32A. The unit combines Bluetooth and WiFi connectivity with a 1.3″ OLED indicator and LED indicator, enabling app-based sharing, charging mode selection and charging current adjustment. Its handheld controller box measures L281 × W100 × H66 mm and the 5 m cable keeps the charger transportable for mobile and backup charging use.
Key Features
- Four power options: 3.5 kW/16A and 7 kW/32A single-phase, 11 kW/16A and 22 kW/32A three-phase.
- Type 2 charging plug: IEC 62196-2 connector for compatible electric vehicles.
- App control: share the charging pile, select a charging mode and set charging current via the app.
- Wireless connectivity: Bluetooth and WiFi communication interface.
- Clear status display: LED indicator plus 1.3″ OLED indicator.
- Multiple power plug options: Type F 16A single-phase, CEE Blue 3-pin 32A single-phase, CEE Red 5-pin 16A three-phase or CEE Red 5-pin 32A three-phase.
- Durable construction: fireproof PC shell, pure copper silver-plated plug pins and a pure copper core cable with TPU jacket rated UL94V-0 flame retardant.
- Electrical protection suite: overcurrent, residual current, ground, surge, over/under voltage, over-temperature, and leakage protection Type A (AC 30mA) or Type A+DC6mA (AC 30mA+DC 6mA).
- Rugged mechanical performance: no damage under 5000N crushing force and mechanical life greater than 10,000 times.
Applications
- Mobile AC charging where a fixed wall-mounted unit is not available.
- Fleet and workshop charging with user-selectable current settings.
- Shared charging scenarios enabled by the app’s charge-pile sharing function.
- Indoor or outdoor use across a working temperature range of -30°C to +50°C.
Technical Specifications
| Product Model | Z7A Series (3.5KW / 7KW / 11KW / 22KW) |
| Input Voltage | 230Vac±15% / 400Vac±15% |
| Rated Current | 16A / 32A |
| Rated Power | 3.5KW/16A; 7KW/32A; 11KW/16A; 22KW/32A |
| Power Supply | 1 Phase / 3 Phase |
| Charging Type | Level 2 |
| Charging Plug | IEC 62196-2 (Type 2) |
| Reference Standards | IEC 61851-1, IEC 62752, IEC 62196-2 |
| Power Plug | Type F 16A-1 Phase / CEE Blue-3 Pin-32A-1 Phase / CEE Red-5 Pin-16A-3 Phase / CEE Red-5 Pin-32A-3 Phase |
| Charging Cable | 3 x 2.5 mm² + 1 x 0.5 mm² (1 Phase/16A) 3 x 6.0 mm² + 1 x 0.5 mm² (1 Phase/32A) 5 x 2.5 mm² + 1 x 0.5 mm² (3 Phase/16A) 5 x 6.0 mm² + 1 x 0.5 mm² (3 Phase/32A) |
| APP Control | Share charging pile; select a charging mode; set charging current |
| User Interface | LED Indicator + 1.3″ OLED Indicator |
| Communication Interface | Bluetooth; WiFi |
| Working Temperature | -30°C~+50°C |
| Humidity | 5~95% Non-Condensing |
| IP Rate | IP55 for Controller Box; IP55 for Charging Plug |
| Crushing Force | No Damage Under 5000N |
| Shell | Fireproof PC |
| Charging Plug Pin | Pure Copper Silver Plated |
| Charging Cable | Pure Copper Core with TPU Cable Jacket; Flame Retardant Grade UL94V-0 |
| Mechanical Life | >10,000 Times |
| Electrical Protection | Over current protection; Residual current protection; Ground protection; Surge protection; Over/Under voltage protection; Over temp protection; Leakage protection Type A (AC 30mA) / Type A+DC6mA (AC 30mA+DC 6mA) |
| Control Box Size | L281*W100*H66 mm / L11.06″*W3.94″*H2.60″ |
| Cable Length | 5 Meter / 16.4ft / Customized |
| Inner Box | L410*W260*H200 mm / L16.14″*W10.24″*H7.87″ |
| Outer Carton | L545*W430*H470 mm / L21.46″*W16.93″*H18.51″ (4 pieces) |
| Net Weight | ≤ 5KG (1 piece) |
Why Choose This Product?
The Z7A Series offers a portable AC Level 2 charging format with four power ratings, selectable 16A/32A current and both single- and three-phase supply support. Its Bluetooth/WiFi app control, OLED display and comprehensive on-board protection set make it a practical option for users who need charging flexibility without a permanently installed charging point.
Manufacturer Recommendation
GuangDong ChongWei Technology Co., Ltd. provides this model as part of its Portable EV Charger range, with supporting documentation against IEC 61851-1, IEC 62752 and IEC 62196-2 reference standards. Buyers should confirm the required power level, phase, power plug type and cable length when ordering.
Sourcing Guide (FAQ)
Which power ratings are available in the Z7A Series?
The Z7A Series is available at 3.5 kW/16A, 7 kW/32A, 11 kW/16A and 22 kW/32A.
What is the difference between the single-phase and three-phase configurations?
Single-phase models use 230Vac±15% input, while three-phase models use 400Vac±15% input. The corresponding power plug options are Type F 16A single-phase, CEE Blue 3-pin 32A single-phase, CEE Red 5-pin 16A three-phase and CEE Red 5-pin 32A three-phase.
How does app control work on this charger?
The Z7A supports Bluetooth and WiFi communication. Through the app, users can share the charging pile, select a charging mode and set the charging current.
What protection features are built in?
The charger includes overcurrent protection, residual current protection, ground protection, surge protection, over/under voltage protection, over-temperature protection and leakage protection Type A (AC 30mA) or Type A+DC6mA (AC 30mA+DC 6mA).
What is the cable length and is it customizable?
The standard charging cable length is 5 meters / 16.4 ft, with customization available.
Summary
Z7A Series Type 2 portable EV charger delivers AC Level 2 charging at 3.5kW, 7kW, 11kW or 22kW. It supports 16A/32A single- and three-phase supply, Type 2 IEC 62196-2 connectors, WiFi and Bluetooth app control, a 1.3″ OLED display, IP55 protection and a 5 m cable — a practical mobile charging solution for workshops and fleets.
