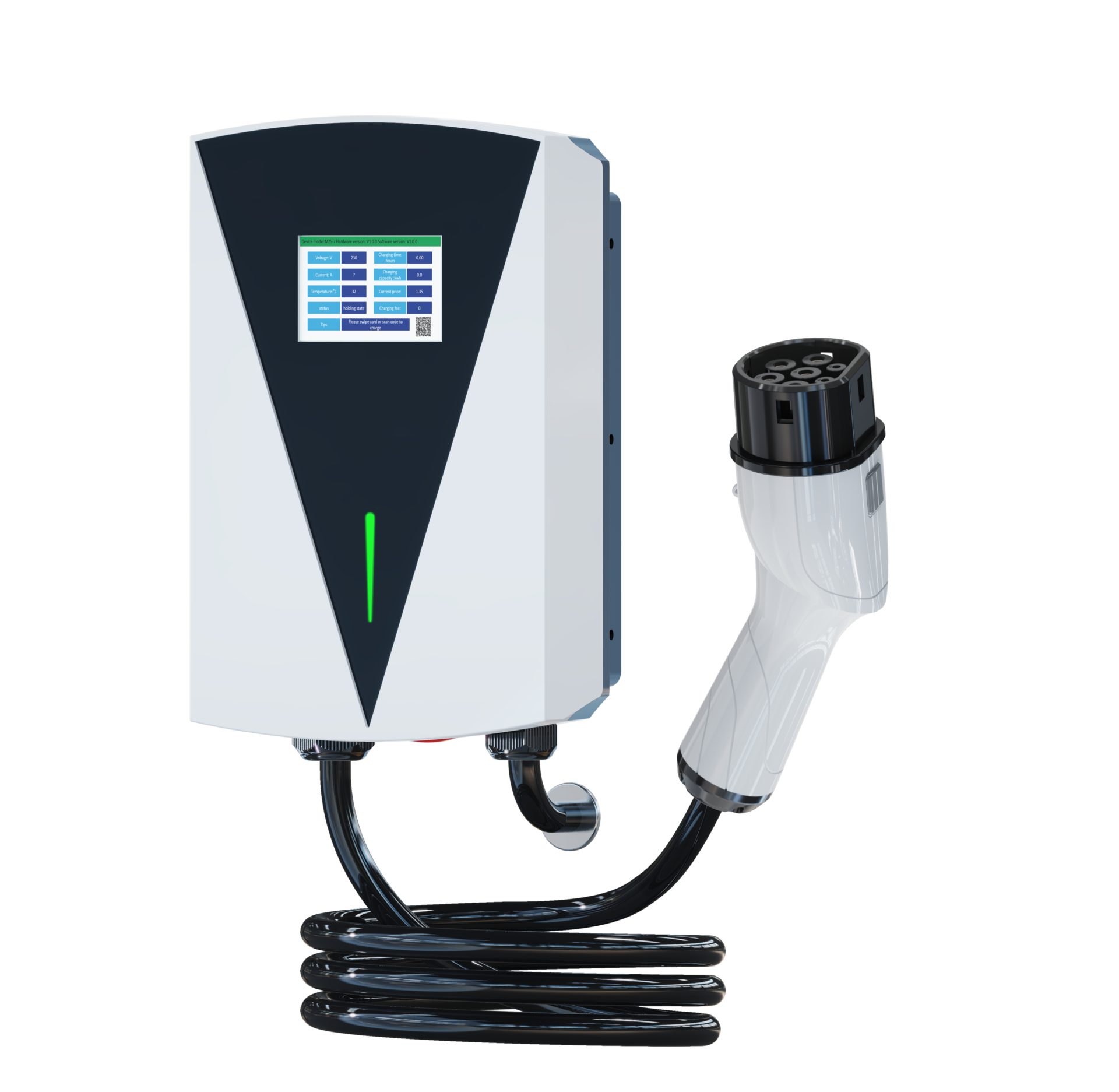

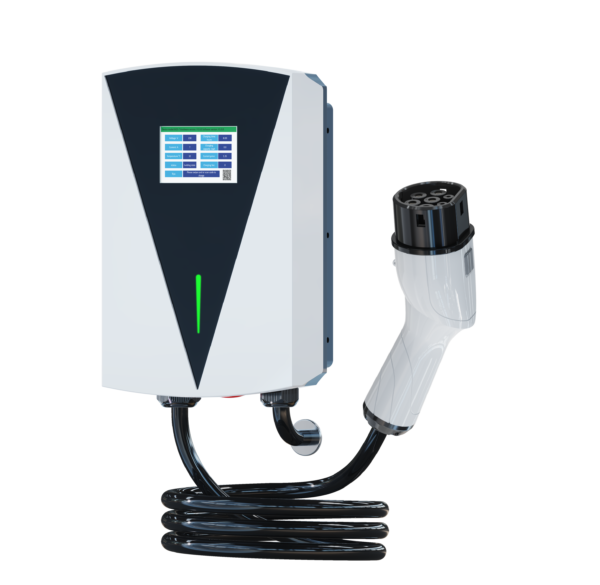

Z6A Type 2 Wall-Mounted AC EV Charger, 3.5kW/7kW/11kW/22kW, OCPP 1.6J
The Z6A wall-mounted AC EV charger supports 3.5kW/7kW/11kW/22kW output with a Type 2 connector and Level 2 charging. It offers OCPP 1.6J, RFID, QR code, Bluetooth, Wi-Fi, Ethernet and 4G connectivity, plus an optional MID meter. The IP55 design suits residential, commercial and fleet charging in temperatures from -30°C to +50°C.
Product Overview
The Z6A Series is a wall-mounted AC EV charger designed for Level 2 charging of electric vehicles. It is available in 3.5 kW, 7 kW, 11 kW and 22 kW power ratings and uses an IEC 62196-2 (Type 2) charging plug. The charger combines a 3.5-inch LCD indicator, LED status display, app-based control and multiple communication options to support residential, commercial and fleet charging environments.
The unit is enclosed in a fireproof PC shell and is rated IP55 for both the controller box and the charging plug. It operates across a temperature range of -30°C to +50°C and 5% to 95% non-condensing humidity, making it suitable for indoor and outdoor installation where a wall-mounted AC charging point is required.
Key Features
- Multiple power options: 3.5 kW / 16 A, 7 kW / 32 A, 11 kW / 16 A and 22 kW / 32 A.
- Type 2 connector: IEC 62196-2 charging plug.
- Flexible power supply: 1-phase or 3-phase input at 230 Vac ±15% or 400 Vac ±15%.
- Smart connectivity: Bluetooth, Wi-Fi, Ethernet and 4G communication interfaces.
- Multiple application functions: OCPP 1.6J, RFID card, QR code and optional built-in MID meter.
- App control: Share charging pile, select charging mode and set charging current.
- User interface: LED indicator plus 3.5-inch LCD indicator.
- Durable construction: Fireproof PC shell, pure copper silver-plated charging plug pins, pure copper core cable with TPU jacket, flame retardant grade UL94V-0.
- Mechanical durability: Mechanical life >10,000 times; no damage under 5000 N crushing force.
- Electrical protection: Over current, residual current, ground, surge, over/under voltage, over temperature and leakage protection (Type A 30 mA AC or Type A+DC 6 mA 30 mA AC + 6 mA DC).
Applications
- Residential wall-mounted EV charging.
- Commercial parking and workplace charging.
- Fleet and shared charging installations where OCPP 1.6J and RFID access are required.
- Indoor and outdoor locations within the specified IP55 and temperature ratings.
Technical Specifications
| Basic Information | |
|---|---|
| Product Model | Z6A Series (3.5KW / 7KW / 11KW / 22KW) |
| Input Voltage | 230Vac±15% / 400Vac±15% |
| Rated Current | 16A / 32A |
| Rated Power | 3.5KW/16A; 7KW/32A; 11KW/16A; 22KW/32A |
| Power Supply | 1 Phase / 3 Phase |
| Product Specification | |
| Charging Type | Level 2 |
| Charging Plug | IEC 62196-2 (Type 2) |
| Reference Standards | IEC 61851-1, IEC 62752, IEC 62196-2 |
| Power Plug | Type F 16A-1 Phase / CEE Blue-3 Pin-32A-1 Phase / CEE Red-5 Pin-16A-3 Phase / CEE Red-5 Pin-32A-3 Phase |
| Charging Cable | 3 x 2.5 mm² + 1 x 0.5 mm² (1 Phase/16A); 3 x 6.0 mm² + 1 x 0.5 mm² (1 Phase/32A); 5 x 2.5 mm² + 1 x 0.5 mm² (3 Phase/16A); 5 x 6.0 mm² + 1 x 0.5 mm² (3 Phase/32A) |
| Control and Connectivity | |
| APP Control | Share charging pile; Select a charging mode; Set charging current |
| User Interface | LED Indicator + 3.5” LCD Indicator |
| Communication Interface | Bluetooth; Wi-Fi; Ethernet; 4G |
| Multiple Application | OCPP1.6J; RFID Card; QR Code; Built-in MID Meter (Option) |
| Working Environment | |
| Working Temperature | -30°C~+50°C |
| Humidity | 5~95% Non-Condensing |
| IP Rating | IP55 for Controller Box; IP55 for Charging Plug |
| Material Performance | |
| Crushing Force | No Damage Under 5000N |
| Shell | Fireproof PC |
| Charging Plug Pin | Pure Copper Silver Plated |
| Charging Cable | Pure Copper Core with TPU Cable Jacket; Flame Retardant Grade UL94V-0 |
| Mechanical Life | >10,000 Times |
| Electrical Protection | |
| Protection Functions | Over current protection; Residual current protection; Ground protection; Surge protection; Over/Under voltage protection; Over temperature protection; Leakage protection Type A (AC 30mA) / Type A+DC 6mA (AC 30mA + DC 6mA) |
| Dimension & Package | |
| Control Box Size | L290 × W210 × H112 mm / L11.42″ × W8.27″ × H4.41″ |
| Cable Length | 5 Meter / 16.4 ft / Customized |
| Inner Box | L410 × W290 × H240 mm / L16.14″ × W11.42″ × H9.45″ |
| Outer Carton | L650 × W430 × H275 mm / L25.59″ × W16.93″ × H10.83″ |
| Net Weight | ≤ 6KG (1 piece) |
Why Choose This Product?
The Z6A wall-mounted AC EV charger gives installers and operators a single platform across 3.5 kW to 22 kW power ratings. It combines a Type 2 connector, OCPP 1.6J back-office compatibility, RFID access and app-based current control. The IP55 enclosure and -30°C to +50°C operating range allow deployment in varied indoor and outdoor environments, while multiple communication interfaces support standalone or networked charging.
Manufacturer Recommendation
Select the Z6A model that matches the available supply: 1-phase 230 Vac for 3.5 kW or 7 kW, and 3-phase 400 Vac for 11 kW or 22 kW. Confirm the required power plug type, cable length and whether an MID meter or specific protection type is needed. The modular options – OCPP 1.6J, RFID, QR code, MID meter, and Bluetooth/Wi-Fi/Ethernet/4G – allow configuration for residential, commercial or fleet use.
Sourcing Guide (FAQ)
What power ratings are available for the Z6A?
The Z6A Series is available in 3.5 kW/16 A, 7 kW/32 A, 11 kW/16 A and 22 kW/32 A configurations.
Which connector standard does the Z6A use?
It uses an IEC 62196-2 (Type 2) charging plug and is designed for Level 2 AC charging.
What communication and access options are supported?
The charger supports Bluetooth, Wi-Fi, Ethernet and 4G, and offers OCPP 1.6J, RFID card, QR code and an optional built-in MID meter.
What is the IP rating and operating temperature range?
The controller box and charging plug are both rated IP55, and the working temperature range is -30°C to +50°C.
What is the standard cable length?
The standard charging cable length is 5 meters (16.4 ft); customized lengths are also available.
Summary
The Z6A Series Type 2 wall-mounted AC EV charger delivers flexible 3.5 kW to 22 kW charging for electric vehicles. With OCPP 1.6J, RFID, QR code, optional MID metering and multiple connectivity options, it is suited to residential, commercial and fleet charging where a durable IP55, wall-mounted Level 2 solution is required.
