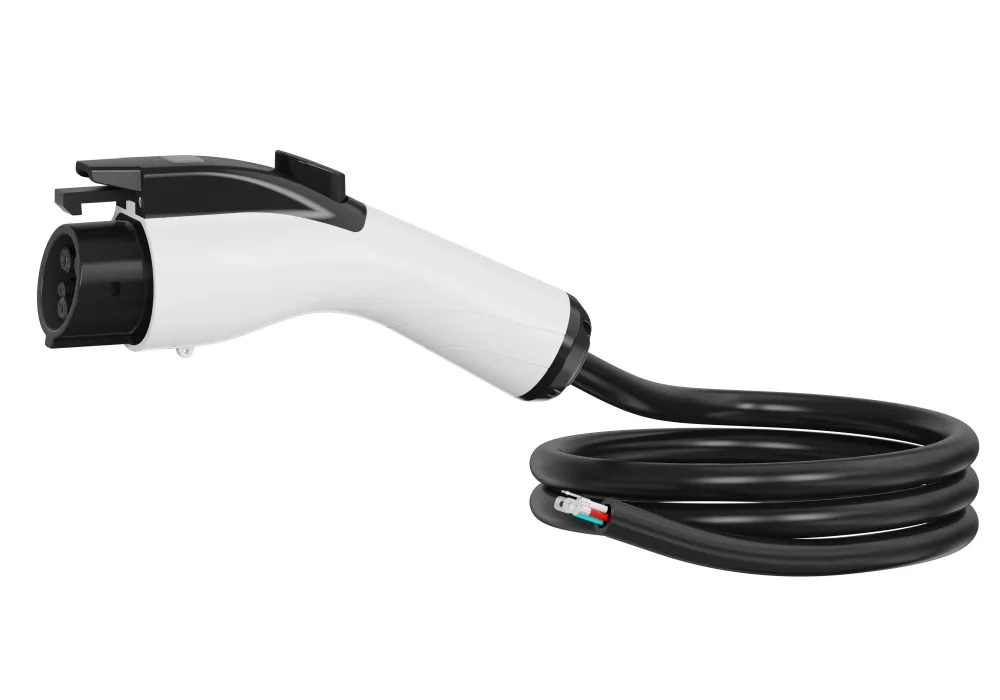

Q2 Type 2 EV Charging Connector, TUV Certified, 5 m Cable, 16A/32A, IP55/IP65
Q2 Type 2 EV charging connector with TUV-CE/CB/UKCA certification, AC 230V/400V and 16A/32A MAX. PC+PA66+GF25% housing, silver-plated copper alloy conductors, 5 m cable, IP55 or optional IP65, over 10,000 no-load plug cycles. This charging gun is a connector component for Type 2 AC EV charging cable assemblies and equipment.
| Certification | TUV |
|---|
Product Overview
The Q2 is a Type 2 AC EV charging connector supplied by Guangdong Chongwei. It is a charging connector (charging gun) component rather than a complete EV charger or charging station, and it is intended to be built into Type 2 AC charging cable assemblies and charging equipment. The connector carries TUV-CE/CB/UKCA certification and is rated for AC 230V/400V and 16A/32A MAX. Its case is moulded from PC+PA66+GF25% with silver-plated copper alloy conductors, and the standard cable length is 5 metres.
Key Features
- Type 2 AC connector: Model Q2 charging connector (charging gun) for Type 2 AC charging cable assemblies and equipment.
- Certification: TUV-CE/CB/UKCA.
- Electrical rating: AC 230V/400V discharge voltage; 16A/32A MAX rated current.
- Thermal and dielectric performance: Terminal temperature rise <50K; withstand voltage 1500V.
- Durable housing and contacts: PC+PA66+GF25% case material and silver-plated copper alloy conductors.
- Secure coupling: Coupled insertion force 45N < F < 100N.
- Long service life: No-load plug-in/out greater than 10,000 times.
- Environmental protection: IP55 standard, IP65 optional.
- Working environment: -30 °C to +50 °C, 5%–95% humidity, altitude up to 2000 m.
- Cable length: 5 metres.
Applications
The Q2 Type 2 EV charging connector is intended for use where a Type 2 AC connector is required within an EV charging cable assembly or charging equipment build. Typical B2B applications include Type 2 AC charging cable assemblies and charging equipment that accepts a Type 2 AC connector. Please confirm the connector standard, electrical rating and installation requirements of the intended system before specifying this connector.
Technical Specifications
| Electrical Parameters | |
| Discharge Voltage | AC 230V/400V |
| Rate Current | 16A/32A MAX |
| Terminal Temp Rise | <50K |
| Withstand Voltage | 1500V |
| Material Parameters | |
| Case Material | PC+PA66+GF25% |
| Conductor | Copper alloy with silver plating |
| Cable Length | 5 Meter |
| Coupled Insertion Force | 45N < F < 100N |
| No-Load Plugin/Out | >10,000 times |
| Environmental Parameters | |
| Work Temperature | -30°C ~ +50°C |
| Work Humidity | 5% ~ 95% |
| Work Altitude | ≤ 2000 Meter |
| IP Code | IP55 / IP65 (Optional) |
| Certification | TUV-CE/CB/UKCA |
| Size & Package | |
| Product Size | L:217.8 × W:108.0 × H:60.0 mm |
| Inner Box | L:350.0 × W:350.0 × H:120.0 mm |
| Outer Carton (6 pieces) | L:780.0 × W:365.0 × H:365.0 mm |
| Net Weight (1 piece) | ≤ 4KG |
Why Choose This Product?
The Q2 Type 2 EV charging connector combines a TUV-CE/CB/UKCA certified design with AC 230V/400V, 16A/32A MAX ratings and a 5-metre cable as standard. Its PC+PA66+GF25% housing, silver-plated copper alloy conductors and greater than 10,000 no-load plug cycles support long-term use in Type 2 AC charging cable assemblies. Optional IP65 protection gives buyers a choice of environmental protection level for the connector.
Manufacturer Recommendation
Guangdong Chongwei manufactures the Q2 Type 2 AC connector with a defined set of electrical, material and environmental parameters and TUV-CE/CB/UKCA certification. The cable length is described as customized, and the IP rating is available as IP55 standard or IP65 optional, so buyers can match the connector to their cable assembly requirements. For sourcing, confirm the required IP rating, cable length and connector configuration with the manufacturer before ordering.
Sourcing Guide (FAQ)
What is the Q2?
The Q2 is a Type 2 AC EV charging connector from Guangdong Chongwei. It is a charging connector (charging gun) component, not a complete EV charger or charging station.
What are the electrical ratings of the Q2 connector?
The Q2 is rated for AC 230V/400V discharge voltage and 16A/32A MAX rated current, with a terminal temperature rise below 50K and a withstand voltage of 1500V.
What is the standard cable length?
The standard cable length is 5 metres. The product page also lists customized line length, so alternative lengths can be discussed with the manufacturer.
What is the IP rating?
The Q2 is available with IP55 as standard, with IP65 available as an option.
What certifications does the Q2 connector have?
The Q2 Type 2 AC connector is TUV-CE/CB/UKCA certified.
Summary
The Q2 Type 2 EV Charging Connector is a TUV-CE/CB/UKCA certified Type 2 AC charging connector rated AC 230V/400V and 16A/32A MAX, with a 5-metre cable, PC+PA66+GF25% housing, silver-plated copper alloy conductors, IP55 standard or optional IP65 protection and over 10,000 no-load plug cycles. It is suited to Type 2 AC EV charging cable assemblies and charging equipment builds where a certified, durable Type 2 connector is required.
