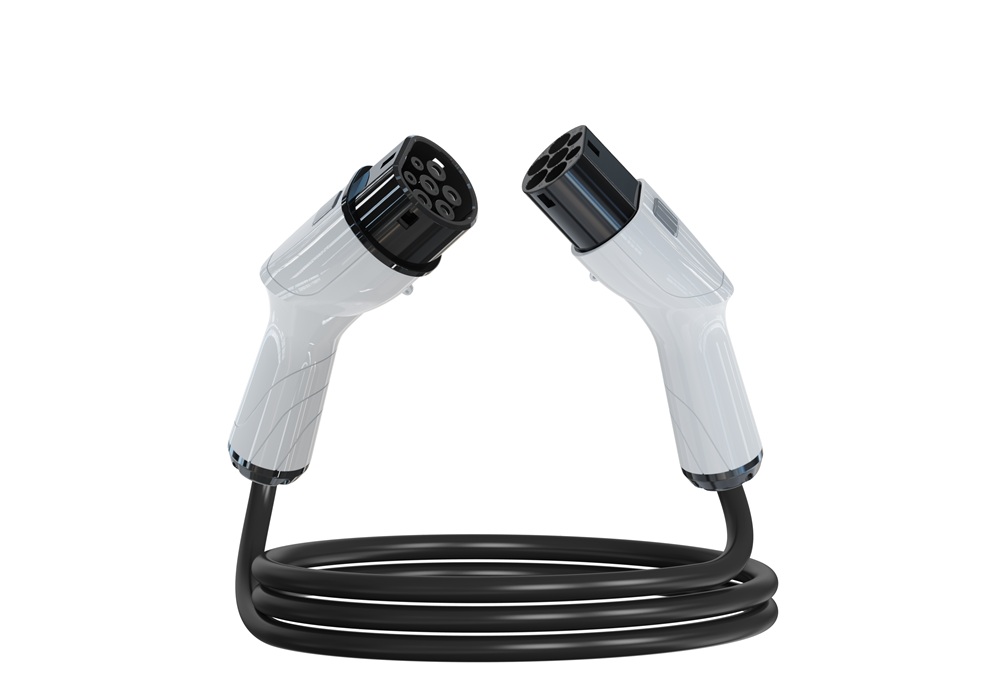

Type 2 to Type 2 EV Charging Cable, 5 m, 16A/32A, IP55
Type 2 to Type 2 EV charging cable with 5 m length, AC 220V/380V, 16A/32A MAX rating and IP55 protection. Built with a PC+PA66+GF25% case and silver-plated copper alloy conductors. Suitable for Mode 3 AC charging connections between Type 2 infrastructure and Type 2 vehicles. Customized line lengths are available.
Product Overview
The Type 2 to Type 2 EV Charging Cable is designed for AC charging connections between Type 2 charging equipment and Type 2 vehicles. This cable is available with customized line length and the standard supplied cable length in the source data is 5 meters. It supports AC 220V/380V discharge voltage and a rated current of 16A/32A MAX.
The assembly uses a PC+PA66+GF25% case material and silver-plated copper alloy conductors. It is rated IP55 and operates within a working temperature range of -30°C to +50°C. The cable is supplied in an inner box and an outer carton of 6 pieces.
Key Features
- Type 2 to Type 2 configuration: Connects Type 2 charging equipment to Type 2 vehicles.
- Customized line length: Cable length can be customized, with 5 meters stated as the standard supplied length in the source data.
- Electrical performance: AC 220V/380V discharge voltage and 16A/32A MAX rated current.
- IP55 protection: Suitable for installations where an IP55-rated charging cable is required.
- Durable construction: PC+PA66+GF25% case material and silver-plated copper alloy conductor.
- Temperature tolerance: Working temperature range of -30°C to +50°C.
- Mechanical endurance: No-load plug in/out rated at more than 10,000 times.
Applications
- AC charging connections between Type 2 charging equipment and Type 2 electric vehicles.
- Residential, commercial and fleet charging points using Type 2 connectors.
- Indoor and outdoor installations where IP55 protection is suitable.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | Type 2 |
| Product Type | Type 2 to Type 2 EV Charging Cable |
| Discharge Voltage | AC 220V/380V |
| Rate Current | 16A/32A MAX |
| Terminal Temp Rise | <50K |
| Withstand Voltage | 1500V |
| Case Material | PC+PA66+GF25% |
| Conductor | Copper alloy with silver plating |
| Cable Length | 5 Meter |
| Coupled Insertion Force | 45N < F < 100N |
| No-Load Plugin/Out | >10,000 times |
| Work Temperature | -30°C ~ +50°C |
| Work Humidity | 5% ~ 95% |
| Work Altitude | ≤ 2000 Meter |
| IP Code | IP55 |
| Product Size | L: 230 mm × W: 112.5 mm × H: 60.3 mm |
| Inner Box | L: 350.0 mm × W: 350.0 mm × H: 120.0 mm |
| Outer Carton (6 pieces) | L: 780.0 mm × W: 365.0 mm × H: 365.0 mm |
| Net Weight (1 piece) | ≤ 5KG |
Why Choose This Product?
This Type 2 to Type 2 EV charging cable combines a customized line length option, 16A/32A MAX current capacity and IP55 protection in a single assembly. The specified PC+PA66+GF25% housing and silver-plated copper alloy conductors support a mechanical endurance rating of more than 10,000 no-load plug in/out cycles. For projects requiring a 5-meter Type 2 charging cable with defined packing dimensions, this model provides a clear specification basis.
Manufacturer Recommendation
GuangDong ChongWei Technology Co., Ltd. manufactures this Type 2 to Type 2 EV charging cable and offers customized line length. The source product page states a 5-meter cable length, AC 220V/380V operation and IP55 rating. Buyers can review the published electrical, material, environmental and packaging parameters in the specification table above before placing an inquiry.
Sourcing Guide (FAQ)
1. What is the cable length of this Type 2 to Type 2 EV charging cable?
The standard supplied cable length stated in the source data is 5 meters. Customized line length is also available.
2. What current and voltage does this Type 2 charging cable support?
It supports a discharge voltage of AC 220V/380V and a rated current of 16A/32A MAX.
3. What is the IP rating of this cable?
The source specification states an IP55 rating.
4. What materials are 已用 in the cable and connectors?
The case material is PC+PA66+GF25%, and the conductor is copper alloy with silver plating.
5. What is the operating temperature range?
The working temperature range is -30°C to +50°C, with working humidity of 5% to 95% and working altitude of ≤ 2000 meters.
Summary
This Type 2 to Type 2 EV Charging Cable is a 5-meter AC charging cable rated 16A/32A MAX and IP55, intended for Type 2 to Type 2 connections in residential, commercial and fleet charging applications. With a PC+PA66+GF25% case, silver-plated copper alloy conductors and customized line length availability, it is positioned for buyers who need a clearly specified Type 2 EV charging cable with defined packing and weight parameters.
This product is supplied directly by the manufacturer’s factory. Click the supplier inquiry button below to get a quote. ↓
