ZDZ2 Type 2 EV Charger Socket – AC 230V/400V, 16A/32A, IEC 62196

Product Overview

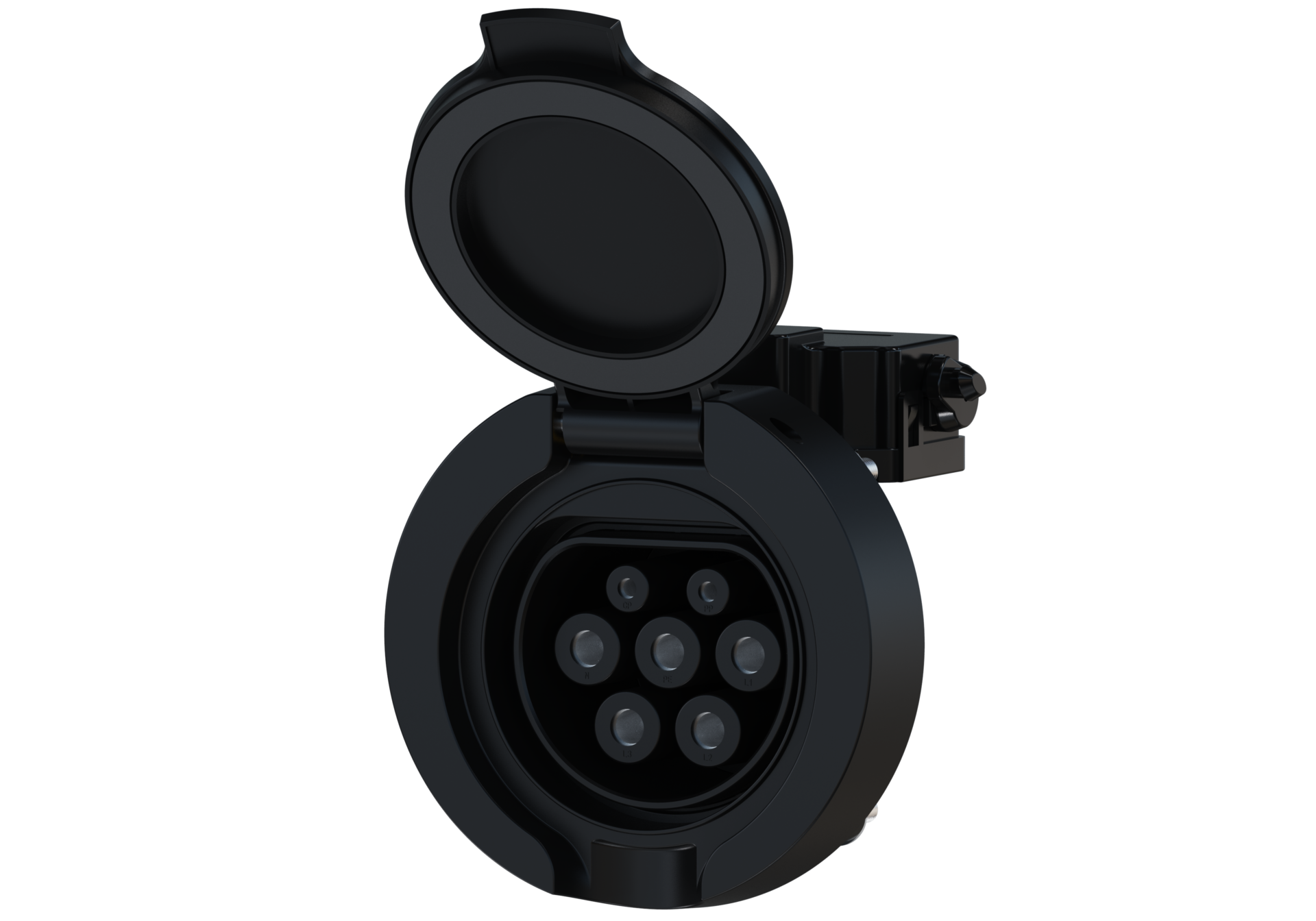

The ZDZ2 is a Type 2 EV charger socket component designed for integration into AC charging equipment. It is not a complete EV charger or charging station; it is the socket interface 已用 by charging equipment manufacturers. The socket supports AC 230V/400V working voltage and a rated current of 16A/32A MAX, and it references IEC 62196-1:2014 and IEC 62196-2:2016.

Built with a PC+PA66+GF25% case and silver-plated copper alloy conductors, the ZDZ2 combines durable materials with an IP54 rating and a wide operating temperature range of -30°C to +50°C. Optional configurations include an anti electric shock protection device, an electronic lock, and four-wire or three-wire connection.

Key Features

• AC EV charger socket component for charging equipment integration
• Working voltage: AC 230V/400V
• Rated current: 16A/32A MAX
• Terminal temperature rise: <50K
• Withstand voltage: 2500V AC/1Min
• Case material: PC+PA66+GF25%
• Conductor: copper alloy with silver plating
• Coupled insertion force: 45N<F<100N
• No-load plug/unplug: >10,000 times
• IP Code: IP54
• Optional: anti electric shock protection device
• Optional: electronic lock
• Optional: four-wire/three-wire
• References IEC 62196-1:2014 and IEC 62196-2:2016

Applications

• Integration into AC EV charging equipment where a Type 2 socket interface is required
• EV charging equipment manufacturing and assembly
• Use in charging equipment requiring an IP54-rated socket component
• Use in charging equipment with optional anti electric shock protection, electronic lock, or four-wire/three-wire configuration

Technical Specifications

Why Choose This Product?

The ZDZ2 Type 2 EV charger socket offers a factory-supplied AC socket solution for charging equipment manufacturers who need a component that supports 230V/400V, 16A/32A, IP54 protection, and optional anti electric shock protection and electronic lock. Its PC+PA66+GF25% case and silver-plated copper alloy conductors are specified to support reliable operation across a -30°C to +50°C temperature range.

Manufacturer Recommendation

This ZDZ2 socket is supplied by Guangdong Chongwei as a factory supply component for EV charging equipment. The model references IEC 62196-1:2014 and IEC 62196-2:2016, and it is available with optional configurations including anti electric shock protection, electronic lock, and four-wire or three-wire connection.

Sourcing Guide (FAQ)

What is the ZDZ2?

The ZDZ2 is an AC EV charger socket component, model number ZDZ2, designed for use in charging equipment. It is not a complete EV charger or charging station.

What are the voltage and current ratings of the ZDZ2?

The ZDZ2 has a working voltage of AC 230V/400V and a rated current of 16A/32A MAX.

What material is the ZDZ2 case made from?

The case material is PC+PA66+GF25%, and the conductor is copper alloy with silver plating.

What is the IP rating and operating temperature of the ZDZ2?

The ZDZ2 has an IP Code of IP54 and a work temperature range of -30℃~+50°C (-22°F~+122°F).

Does the ZDZ2 offer optional configurations?

Yes. The ZDZ2 offers an optional anti electric shock protection device, an optional electronic lock, and optional four-wire or three-wire connection.

Summary

The ZDZ2 Type 2 EV charger socket is an AC socket component for charging equipment, supporting 230V/400V and 16A/32A with IP54 protection, PC+PA66+GF25% housing, and silver-plated copper alloy conductors. It is suited to EV charging equipment assembly where a durable socket interface with optional anti electric shock protection, electronic lock, and four-wire or three-wire connection is required.
