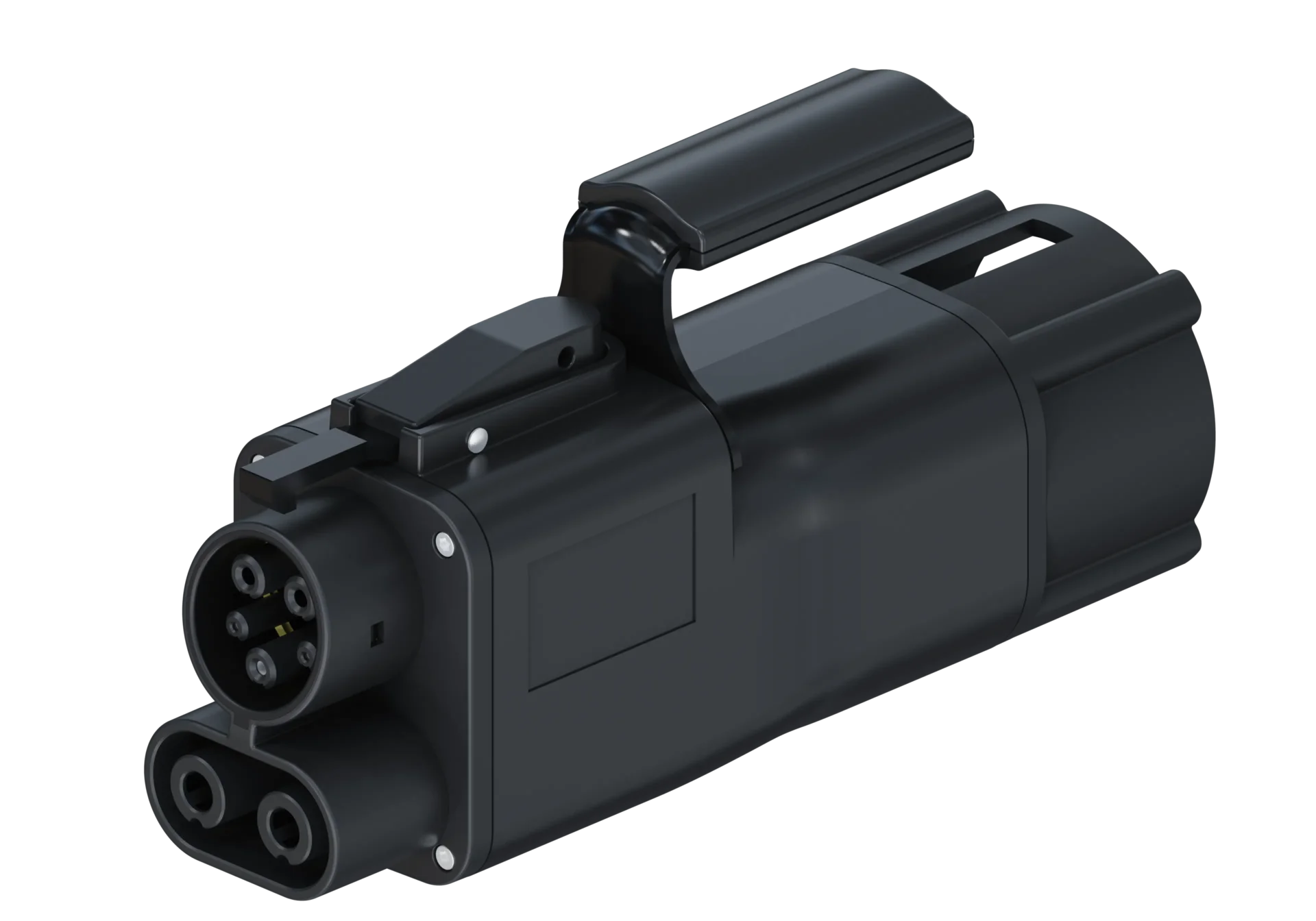

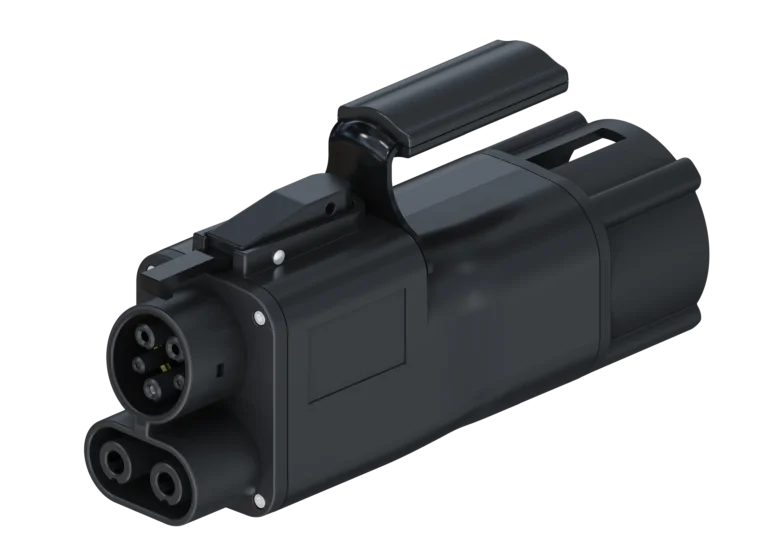

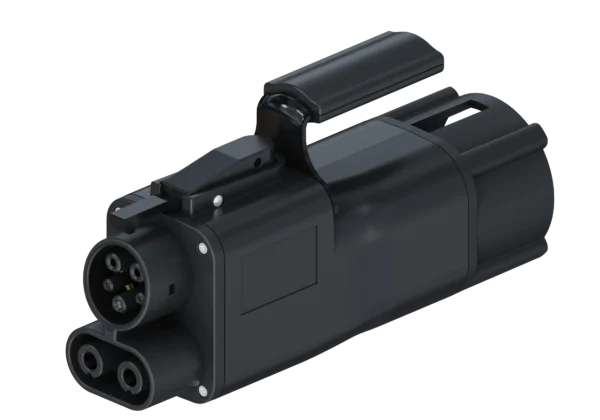

GBT to CCS2 DC Charging Adapter for Cross-Standard EV Charging
GBT to CCS2 DC Charging Adapter connects GBT-standard vehicles to CCS2 DC charging infrastructure. Rated DC 1000V, 300A/400A MAX, silver-plated copper conductors, PC+PA66+GF25% casing, IP65/IP67 optional, and FCC/CE certification. Suitable for cross-standard DC charging applications.
Product Overview
The GBT to CCS2 DC Charging Adapter is a connection adapter designed to link vehicles and DC charging infrastructure that use different charging standards. It enables GBT-standard vehicles to connect to CCS2 DC charging equipment, supporting cross-standard DC charging where the two connector types differ.
Built with a PC+PA66+GF25% case and silver-plated copper conductors, this adapter is engineered for reliable electrical performance. It supports DC 1000V working voltage, 300A/400A MAX rated current, and is available with IP65 or IP67 protection. The adapter is certified to FCC and CE standards.
Key Features
- Cross-standard compatibility: Connects GBT-standard vehicles to CCS2 DC charging infrastructure.
- High-current capacity: Rated 300A / 400A MAX for DC charging applications.
- Durable construction: PC+PA66+GF25% case material with silver-plated copper conductors.
- Wide operating temperature: -22°F to +122°F (-30℃ to +50℃).
- Long mechanical life: No-load plug/unplug rated at more than 10,000 times.
- Environmental protection: IP65/IP67 (optional) for use in demanding conditions.
- Certified: FCC and CE certification.
Applications
- Connecting GBT-standard electric vehicles to CCS2 DC charging stations.
- Cross-standard DC charging in public charging networks.
- Fleet and commercial vehicle charging where GBT and CCS2 standards coexist.
- DC charging infrastructure deployment and maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Work Voltage | DC 1000V |
| Rated Current | 300A / 400A MAX |
| Terminal Temp Rise | <50K |
| Withstand Voltage | 1500V |
| Case Material | PC+PA66+GF25% |
| Conductor | Silver plated copper |
| Coupled Insertion Force | 45N < F < 100N |
| No-Load Plug/Unplug Life | >10,000 times |
| Work Temperature | -22°F ~ +122°F (-30℃ ~ +50℃) |
| Work Humidity | 5% ~ 95% |
| Work Altitude | ≤ 2000 Meter |
| IP Code | IP65 / IP67 (Optional) |
| Certification | FCC, CE |
| Product Size | L: 260 × W: 108 × H: 81 mm |
| Inner Box Size | L: 300 × W: 180 × H: 105 mm |
| Outer Carton | 10 pieces |
| Net Weight (1 piece) | ≤ 2 KG |
Why Choose This Product?
The GBT to CCS2 DC Charging Adapter provides a practical solution for connecting GBT-standard vehicles to CCS2 charging networks. With a high current rating of 300A/400A MAX, DC 1000V working voltage, and robust silver-plated copper conductors, it supports demanding DC charging applications. The PC+PA66+GF25% casing and optional IP65/IP67 protection make it suitable for varied environmental conditions. Certified to FCC and CE, this adapter offers reliable cross-standard connectivity for fleet operators, charging network providers, and EV service companies.
Manufacturer Recommendation
This GBT to CCS2 DC Charging Adapter is manufactured by Guangdong Chongwei Technology Co., Ltd., a company specializing in EV charging connectors, adapters, and related products. The adapter is designed with attention to electrical safety, material durability, and mechanical endurance. With FCC and CE certification, it meets recognized standards for electromagnetic compatibility and product safety. For buyers sourcing cross-standard DC charging adapters, this model delivers verified technical specifications and reliable construction.
Sourcing Guide (FAQ)
What charging standards does this adapter support?
This adapter connects GBT-standard vehicles to CCS2 DC charging equipment. It is designed for DC charging applications where the vehicle and charger use different connector standards.
What is the maximum current rating?
The adapter is rated at 300A continuous and 400A MAX, with a working voltage of DC 1000V.
What are the operating temperature limits?
The adapter operates within -22°F to +122°F (-30℃ to +50℃) and at working humidity of 5% to 95%.
What certifications does this adapter hold?
The GBT to CCS2 DC Charging Adapter is certified to FCC and CE standards as stated on the product page.
What is the mechanical life of the adapter?
The no-load plug/unplug life is rated at more than 10,000 times, indicating a durable coupling mechanism for repeated use.
Summary
The GBT to CCS2 DC Charging Adapter is a cross-standard DC charging solution for connecting GBT-standard electric vehicles to CCS2 charging infrastructure. With DC 1000V working voltage, 300A/400A MAX current capacity, silver-plated copper conductors, and a durable PC+PA66+GF25% housing, it supports reliable DC charging in fleet, public charging, and commercial applications. Certified to FCC and CE, this adapter offers verified performance for businesses seeking cross-standard charging connectivity.
