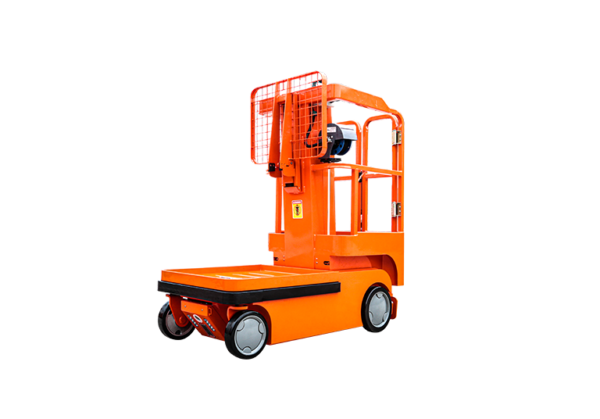

OPT0507 Oil-Free All-Electric Order Picker
The OPT0507 oil-free all-electric order picker delivers efficient, eco-friendly material handling with a 4.99 m working height and 135 kg platform capacity. Its compact 0.75 m width and 0 m inside turning radius ensure excellent maneuverability, while the multi-stage loading platform suits warehouse order picking and stock replenishment.
Product Overview
The OPT0507 Oil-Free All-Electric Order Picker is designed for efficient, environmentally friendly material handling in warehousing and logistics operations. With an “oil free” design, it supports energy saving and environmental protection while delivering reliable performance. Its compact dimensions and tight turning radius make it highly maneuverable in confined spaces, and the multi-stage loading platform addresses varied material transportation needs.
Key Features
- “Oil free” design for energy saving and environmental protection
- Maximum speed of 4.8 km/h for high efficiency
- Small size with a minimum turning radius of 0 m inside and 1.3 m outside, ensuring good maneuverability
- Multi-stage loading platform configured to meet material transportation requirements
Applications
The OPT0507 is suitable for indoor order picking, stock replenishment, and material transportation tasks in warehouses, distribution centers, and logistics facilities where compact, electric, and oil-free operation is preferred.
Technical Specifications
Dimensions
| Parameter | Value |
|---|---|
| Max. Working Height | 4.99 m / 16 ft 4 in |
| Max. Platform Height | 2.99 m / 9 ft 10 in |
| Overall Length | 1.59 m / 5 ft 3 in |
| Overall Width | 0.75 m / 2 ft 6 in |
| Overall Height | 1.59 m / 5 ft 3 in |
| Ground Clearance | 0.04 m / 2 in |
| Wheelbase | 1.11 m / 3 ft 8 in |
| Turning Radius (Inside/Outside) | 0 m / 1.30 m (0 in / 4 ft 3 in) |
| Tyres (Front) | Φ254×63.5 mm |
| Tyres (Back) | Φ305×63.5 mm |
Performance
| Parameter | Value |
|---|---|
| S.W.L Of Platform (For Person) | 135 kg / 298 lb |
| S.W.L Of Pallet (For Goods-Up) | 90 kg / 198 lb |
| S.W.L Of Pallet (For Goods-Down) | 115 kg / 253 lb |
| Max. Occupants (Indoor/Outdoor) | 1 / 0 |
| Forward Speed (Stowed) | ≯4.80 km/h / ≯2.98 mph |
| Back Speed (Stowed) | ≯3.20 km/h / ≯1.99 mph |
| Travel Speed (Raised) | ≯1.30 km/h / ≯0.81 mph |
| Up/Down Speed | 18 / 18 sec |
| Gradeability | 0.15 |
| Max. Working Slope (X/Y) | 0° |
Weight
| Parameter | Value |
|---|---|
| Overall Weight | 660 kg / 1455 lb |
Power
| Parameter | Value |
|---|---|
| Lead-Acid Maintenance-Free Battery | 24V/115Ah |
| Charger | 24V/15A |
| Driving Motor | 2×15VAC / 0.68 kW |
| Lifting Motor | 24VDC / 1.4 kW |
Why Choose This Product?
The OPT0507 order picker combines an oil-free, all-electric design with compact dimensions and a tight turning radius, making it a practical choice for indoor material handling where environmental friendliness and maneuverability are priorities. Its multi-stage loading platform and efficient speed support productive order picking and stock movement.
Manufacturer Recommendation
As an oil-free and all-electric order picker, the OPT0507 is engineered for energy-saving and environmentally conscious operations. Its design and performance characteristics make it a reliable option for businesses seeking efficient, compact lifting equipment for warehouse tasks.
Sourcing Guide (FAQ)
What is the maximum working height of the OPT0507?
The maximum working height is 4.99 m (16 ft 4 in).
What is the platform capacity for a person?
The platform capacity for a person is 135 kg (298 lb).
What type of battery does the OPT0507 use?
It uses a 24V/115Ah lead-acid maintenance-free battery.
What is the turning radius of this order picker?
The turning radius is 0 m inside and 1.30 m outside.
Is the OPT0507 suitable for outdoor use?
The maximum occupants rating is 1 indoor and 0 outdoor, indicating it is intended for indoor use.
Summary
The OPT0507 Oil-Free All-Electric Order Picker offers a compact, eco-friendly solution for indoor order picking and material transportation. With a 4.99 m working height, 135 kg platform capacity, and tight turning radius, it supports efficient warehouse operations.
