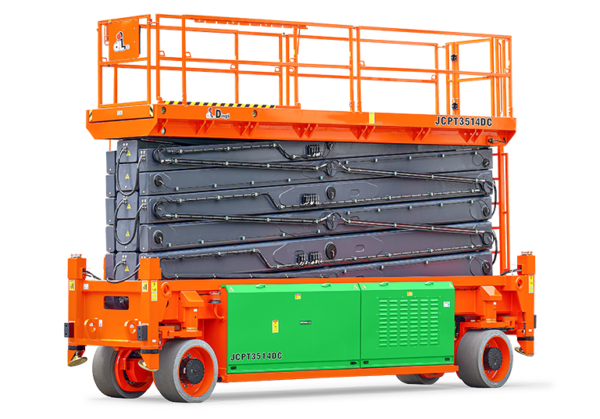

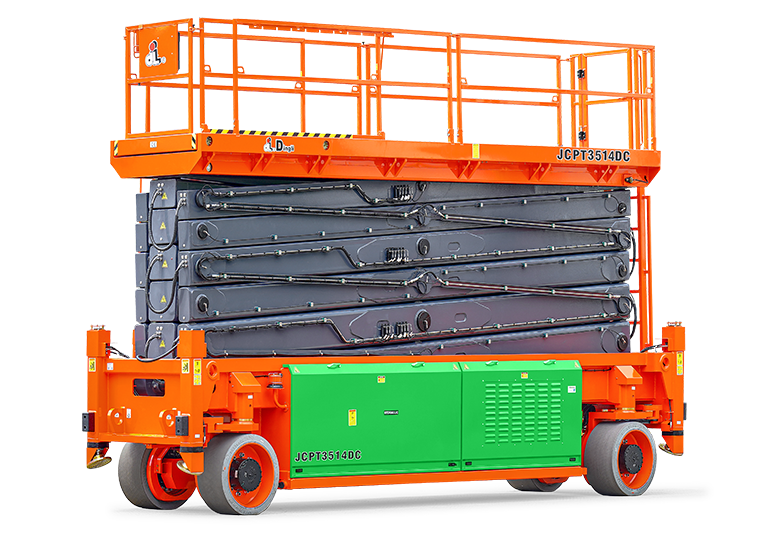

JCPT3514DC Electric Large Scissor Lift – 35m Working Height, 750kg Capacity
The JCPT3514DC is an electric large scissor lift with 35.00m max working height, 33.00m platform height and 750kg safe working load. Its 80V/620Ah lithium battery delivers long endurance with no noise and zero emissions, while the 1.40m overall width provides good passability. It is driveable at full height.
Product Overview
The JCPT3514DC is an electric large scissor lift designed for high-reach work at height. It combines a 35.00m maximum working height and a 33.00m maximum platform height with a 750kg safe working load, making it suitable for demanding lifting tasks. Powered by an 80V/620Ah high-capacity lithium battery pack, the machine offers long endurance and operates with no noise and zero emission, which suits environmentally demanding working conditions.
The lift is driveable at full height with its large load capacity and has an overall width of 1.40m for good passability through congested sites. A 6.50m × 1.20m platform with a 1.90m extension supports working at height, while the electric drive system supports indoor and outdoor use where emissions and noise must be controlled.
Key Features
- Electric model equipped with an 80V/620Ah high-capacity battery pack for long endurance.
- No noise and zero emission, suitable for environmentally demanding working conditions.
- Driveable at full height with a large 750kg load capacity.
- Machine overall width of 1.40m for good passability.
- Maximum working height of 35.00m (114ft 10in) and maximum platform height of 33.00m (108ft 3in).
- Platform size of 6.50m × 1.20m (21ft 4in × 3ft 11in) with platform extension of 1.90m (6ft 3in).
- Safe working load of 750kg (1653lb), including on the extension.
- Lithium battery 80V/620Ah, charger 80V/80A, driving motor 4×56VAC/6.0kW and lifting motor 53VAC/28kW.
Applications
The JCPT3514DC is suited to work at height in settings where electric operation, low noise and zero emission are preferred. Typical uses include:
- Indoor construction and fit-out works where emissions must be minimized.
- High-level maintenance and installation in large buildings and industrial facilities.
- Outdoor projects that require a narrow machine with good passability and long battery endurance.
- Tasks requiring a large platform and high load capacity, such as carrying tools, materials and two occupants indoors or outdoors.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | JCPT3514DC |
| Category | Large Scissor |
| Max. Working Height | 35.00m / 114ft 10in |
| Max. Platform Height | 33.00m / 108ft 3in |
| Overall Length (Without Outriggers) | / |
| Overall Length (With Outriggers) | 7.15m / 23ft 5in |
| Overall Width | 1.40m / 4ft 7in |
| Overall Height (Rails Up) | 4.23m / 13ft 10in |
| Overall Height (Rails Down) | 3.36m / 11ft |
| Platform Size (Length×Width) | 6.50m×1.20m / 21ft 4in×3ft 11in |
| Platform Extension Size | 1.90m / 6ft 3in |
| Ground Clearance (Stowed/Raised) | 0.19m/0.02m / 8in/1in |
| Wheelbase | 5.43m / 17ft 10in |
| Turning Radius (Inside/Outside) | 3.20m/3.80m / 10ft 6in/12ft 6in |
| Tyres | 28×14×22 |
| Safe Working Load | 750kg / 1653lb |
| S.W.L On Extension | 750kg / 1653lb |
| Max. Occupants (Indoor/Outdoor) | 2/2 |
| Gradeability | 0.25 |
| Travel Speed (Stowed) | ≯1.5km/h / ≯0.93mph |
| Travel Speed (Raised) | ≯0.1km/h / ≯0.06mph |
| Travel Speed (Raised) (<11m/≥11m) | / |
| Max. Working Slope (X/Y) | 1°/0° |
| Max. Working Slope (X/Y) (<11m/≥11m) | |
| Up/Down Speed | 180/180sec |
| Overall Weight (Without Outriggers) | / |
| Overall Weight (With Outriggers) | 28400kg / 62611lb |
| Overall Weight (Lead-acid Battery) | / |
| Overall Weight (Lithium Battery) | / |
| Diesel Engine | / |
| Range Extended Engine | / |
| Diesel Tank | / |
| Hydraulic Tank | 280L / 74ga |
| Lead-acid Battery | / |
| Lead-Acid Maintenance-Free Battery | / |
| Lithium Battery | 80V/620Ah |
| Charger | 80V/80A |
| Driving Motor | 4×56VAC/6.0kW |
| Lifting Motor | 53VAC/28kW |
| Motor | / |
Why Choose This Product?
- High reach: 35.00m maximum working height and 33.00m platform height support tall tasks in one setup.
- Strong load capacity: 750kg safe working load, including on the platform extension, allows two occupants and materials.
- Electric operation: 80V/620Ah lithium battery pack provides long endurance with no noise and zero emission for environmentally demanding sites.
- Driveable at full height with a 750kg load, reducing repositioning time during high-level work.
- Compact width: 1.40m overall width gives good passability through narrow access routes.
- Large platform: 6.50m × 1.20m platform with 1.90m extension provides working space at height.
Manufacturer Recommendation
This JCPT3514DC large scissor lift is built for buyers who need a narrow, high-reach electric machine with a large platform and substantial load capacity. The 80V/620Ah lithium battery, 80V/80A charger and dedicated drive and lift motors provide a matched electric drive system for long endurance and zero-emission operation. Its 1.40m width and 750kg driveable-at-height capability make it suitable for sites where access is restricted but lifting demands are high. Support materials include the Large Scissor Lifts manual and the JCPT3514DC specification sheet, with service center, guarantee, manual and BIM manual resources available through the manufacturer’s support pages.
Sourcing Guide (FAQ)
What is the maximum working height of the JCPT3514DC?
The maximum working height is 35.00m (114ft 10in), and the maximum platform height is 33.00m (108ft 3in).
What is the safe working load and occupant capacity?
The safe working load is 750kg (1653lb), including on the extension. Maximum occupants are 2 indoor / 2 outdoor.
What battery and power system does it use?
It uses an 80V/620Ah lithium battery with an 80V/80A charger. Driving motor: 4×56VAC/6.0kW; lifting motor: 53VAC/28kW.
What are the overall dimensions and weight?
Overall width is 1.40m (4ft 7in) and overall length with outriggers is 7.15m (23ft 5in). Overall height is 4.23m (13ft 10in) with rails up and 3.36m (11ft) with rails down. Overall weight with outriggers is 28400kg (62611lb).
Is the machine suitable for indoor and outdoor use?
Yes. It is an electric model with no noise and zero emission, suitable for environmentally demanding working conditions, with a maximum occupant rating of 2 indoor / 2 outdoor.
Summary
The JCPT3514DC electric large scissor lift combines a 35.00m working height, 33.00m platform height and 750kg load capacity in a 1.40m-wide machine. Its 80V/620Ah lithium battery supports long endurance with no noise and zero emission, and it can be driven at full height. For high-reach indoor and outdoor work where passability, platform space and load capacity matter, this model is a strong electric lifting solution.
