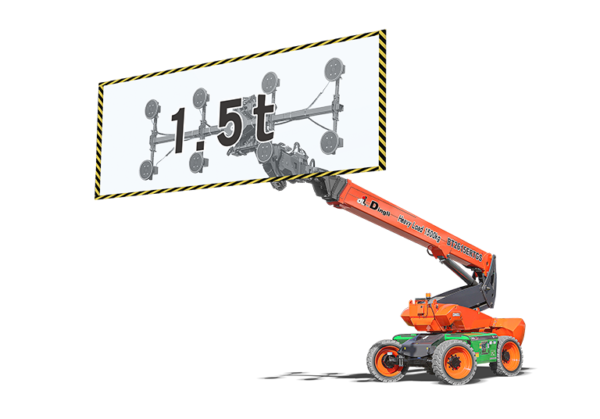

BT2615ERTGS Glass Attachment Boom Lift – 1,500 kg Suction Capacity, 21.93 m Working Height
The BT2615ERTGS glass attachment boom lift combines pure electric drive with 1,500 kg suction capacity and a 21.93 m maximum working height. Its eight independent suction cups rotate, tilt and move in 3D for precise, millimetre-level handling of glass, marble, steel plate and wall panels. Zero-emission operation suits quiet, clean building decoration sites.
Product Overview
The BT2615ERTGS is a glass attachment boom lift designed for handling and installing large building decoration materials at height. It uses pure electric drive with zero emission and no pollution, paired with a 1,500 kg suction capacity. Eight independent suction cups can rotate, tilt at any angle and move in three dimensions for unlimited operation. A high-precision wireless remote control system delivers action accuracy to millimetre level. The machine can absorb more than ten kinds of common building decoration materials, including marble, glass, steel plate and wall panel.
Key Features
- Pure electric drive with zero emission and no pollution
- Large suction capacity of 1,500 kg (3,306 lb) safe working load
- Eight independent suction cups that can rotate, tilt at any angle and move in 3D for unlimited operation
- High-precision wireless remote control system with action accuracy up to millimetre level
- Absorbs more than ten kinds of common building decoration materials, including marble, glass, steel plate and wall panel
- Maximum working height of 21.93 m (71 ft 11 in) with glass installed horizontally and 19.62 m (64 ft 4 in) with glass installed vertically
- Maximum horizontal reach of 10.85 m (35 ft 7 in)
- 360° continuous turntable rotation and 360° continuous grab mechanism wrist rotation
Applications
- Glass installation on building facades and curtain walls
- Handling and positioning of marble and stone panels at height
- Installation of steel plates and wall panels in building decoration work
- Exterior and interior construction tasks requiring precise 3D material movement
Technical Specifications
Dimensions
| Parameter | Value |
|---|---|
| Overall Length (Stowed) | 10.29 m / 33 ft 9 in |
| Overall Length (Transport) | 10.43 m / 34 ft 3 in |
| Overall Width | 2.50 m / 8 ft 2 in |
| Overall Width (Transport) | 2.31 m / 7 ft 7 in |
| Overall Height | 2.87 m / 9 ft 5 in |
| Overall Height (Transport) | 2.54 m / 8 ft 4 in |
| Ground Clearance | 0.41 m / 1 ft 4 in |
| Turntable Tailswing | 1.61 m / 5 ft 3 in |
| Wheelbase | 2.80 m / 9 ft 2 in |
| Tires | 385/45-25 |
Performance
| Parameter | Value |
|---|---|
| Max. Working Height (Glass Installed Horizontally) | 21.93 m / 71 ft 11 in |
| Max. Working Height (Glass Installed Vertically) | 19.62 m / 64 ft 4 in |
| Max. Horizontal Reach | 10.85 m / 35 ft 7 in |
| Turning Radius (Inside/Outside) | 1.87 m / 3.22 m (6 ft 2 in / 10 ft 7 in) |
| Turntable Rotation | 360° Continuous |
| Grab Mechanism Shoulder Horizontal Swing Angle Range | 15° |
| Grab Mechanism Up & Down Pitch Luffing Angle | 172.5° (coordinated by main boom luffing) |
| Grab Mechanism Horizontal Telescopic Stroke | 0.10 m / 4 in |
| Grab Mechanism Elbow Pitch Angle Range | -30 to 90° |
| Grab Mechanism Horizontal Swing Angle | +/-60° |
| Grab Mechanism Up & Down Vertical Translation Stroke | 0.20 m / 8 in |
| Grab Mechanism Left & Right Lateral Translation Stroke | 0.20 m / 8 in |
| Grab Mechanism Wrist Rotation Angle | 360° Continuous |
| Max. Working Slope | 3° |
| Wind Speed | 12.50 m/s |
| S.W.L | 1,500 kg / 3,306 lb |
Weight
| Parameter | Value |
|---|---|
| Overall Weight | 19,500 kg / 42,990 lb |
Power
| Parameter | Value |
|---|---|
| Travel Speed (Stowed) | ≤6.0 km/h / ≤3.70 mph |
| Travel Speed (Raised) | ≤1.1 km/h / ≤0.70 mph |
| Gradeability | 30% |
| Driving Motor | XTQ18-1H/54VAC 18 kW 3243 RPM |
| Lifting Motor | XYQD-24H/56VAC 24 kW 2150 RPM |
| Electronic Control System Voltage | 12 V |
| Hydraulic Tank | 165 L / 43 gal |
| Lithium Battery | TFL-520-DL1/80V |
| Charger | YP603-7280/90-264VAC |
Why Choose This Product?
The BT2615ERTGS offers a combination of high suction capacity, extensive working height and precise multi-axis movement. Its eight independent suction cups and 3D operation allow handling of various building decoration materials, reducing the need for multiple machines on site. The pure electric drive supports use in noise-sensitive or emission-controlled environments, while millimetre-level remote control accuracy helps with accurate placement of large panels.
Manufacturer Recommendation
This glass attachment boom lift is built for professionals who require reliable, precise material handling at height. With a robust design and a comprehensive range of motion, the BT2615ERTGS is suited to demanding construction and decoration projects. Its support documentation includes a specification sheet, service centre information, guarantee details, a manual and a BIM manual, allowing teams to integrate the machine into project planning and maintenance workflows.
Sourcing Guide (FAQ)
What is the maximum working height of the BT2615ERTGS?
The maximum working height is 21.93 m (71 ft 11 in) when glass is installed horizontally, and 19.62 m (64 ft 4 in) when glass is installed vertically.
What is the safe working load of this glass attachment boom lift?
The S.W.L is 1,500 kg (3,306 lb).
Which materials can the suction cups handle?
The machine can absorb more than ten kinds of common building decoration materials, including marble, glass, steel plate and wall panel.
How precise is the remote control system?
The high-precision wireless remote control system provides action accuracy up to millimetre level.
What type of drive system does the BT2615ERTGS use?
It uses pure electric drive with zero emission and no pollution.
Summary
The BT2615ERTGS glass attachment boom lift is a pure electric solution for lifting and positioning large building materials at height. With a 1,500 kg suction capacity, eight independent suction cups, 3D movement and millimetre-level wireless remote control, it supports glass installation, marble handling, steel plate and wall panel placement. Its 21.93 m maximum working height and 10.85 m horizontal reach make it suitable for demanding building decoration projects requiring precision and zero-emission operation.
