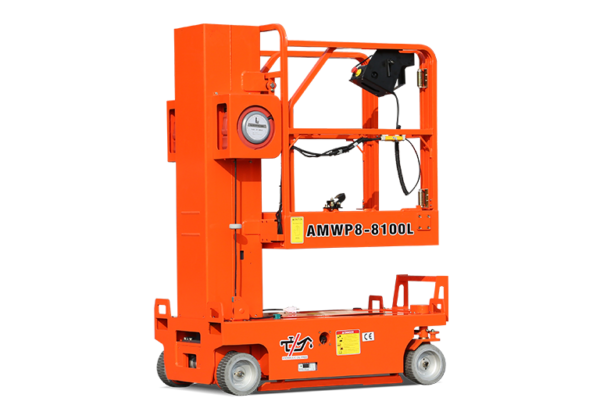

AMWP8-8100L Oil-Free All-Electric Vertical Mast Lift
The AMWP8-8100L is an oil-free, all-electric vertical mast lift with a 7.60 m max working height, 227 kg safe working load and 0.80 m slim width. Brushless DC motors, a 2×12V/115Ah maintenance-free battery and zero-emission operation suit indoor maintenance, installation and warehousing tasks.
Product Overview
The AMWP8-8100L is an oil-free, all-electric vertical lift designed as a compact, low-noise alternative to conventional hydraulic lift equipment. Its electric lifting push rod replaces the traditional hydraulic cylinder, and the machine runs on a brushless DC motor, so the whole unit is presented as maintenance-free with no noise, zero emission and no pollution. A light structure and flexible movement make it suitable for tasks where a narrow footprint and clean operation matter.
Key Features
- Electric lifting push rod replaces the traditional hydraulic cylinder; oil-free design supports energy saving and environmental protection.
- Equipped with a brushless DC motor; the whole machine is maintenance-free.
- No noise, zero emission, no pollution, energy saving and environmental protection.
- Light structure with flexible movement.
Applications
- Indoor maintenance and installation work requiring a compact vertical lift.
- Warehousing, facility upkeep and overhead service tasks where zero-emission, low-noise operation is preferred.
- Work at height where a slim 0.80 m overall width and light structure improve maneuverability.
These application scenarios are practical suggestions based on the product type; source-specific use cases were not listed.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | AMWP8-8100L |
| Product type | Oil-free & all-electric vertical lift |
| Max. working height | 7.60 m / 24 ft 11 in |
| Max. platform height | 5.60 m / 18 ft 4 in |
| Max. horizontal reach | / |
| Max. up and over clearance | / |
| Overall length | 1.63 m / 5 ft 4 in |
| Overall width | 0.80 m / 2 ft 7 in |
| Overall height | 1.99 m / 6 ft 6 in |
| Platform size (L×W) | 1.03 m×0.76 m / 3 ft 5 in×2 ft 6 in |
| Platform extension size | 0.50 m / 1 ft 8 in |
| Ground clearance (stowed) | 0.06 m / 2 in |
| Ground clearance (raised) | 0.014 m / 1 in |
| Wheelbase | 1.21 m / 3 ft 11 in |
| Turning radius (inside/outside) | 0.60 m/1.80 m / 1 ft 11 in/5 ft 11 in |
| Tyres | φ230×100 mm |
| Safe working load | 227 kg / 500 lb |
| S.W.L on extension | 113 kg / 249 lb |
| Max. occupants (indoor/outdoor) | 2/0 |
| Gradeability | 0.25 |
| Max. working slope (X/Y) | 1.5°/3° |
| Turret rotation | / |
| Jib movement | / |
| Travel speed (stowed) | ≯3.6 km/h / ≯2.24 mph |
| Travel speed (raised) | ≯0.5 km/h / ≯0.31 mph |
| Up/down speed | 32/32 sec |
| Overall weight | 1310 kg / 2888 lb |
| Lead-acid maintenance-free battery | 2×12V/115Ah |
| Lithium battery | / |
| Charger | 24V/15A |
| Driving motor | 2×24VAC/0.68 kW |
| Lifting motor | 24VDC/1.4 kW |
Why Choose This Product?
- Oil-free, all-electric operation removes the hydraulic cylinder from the lifting system.
- Brushless DC motor supports maintenance-free use.
- Low-noise, zero-emission performance for indoor work environments.
- Slim 0.80 m width and light structure for flexible movement in confined areas.
- 7.60 m max working height with a 227 kg safe working load.
Manufacturer Recommendation
The AMWP8-8100L is part of the oil-free and all-electric vertical lift range and is supported by resources such as a service center, guarantee, manual and BIM manual references. For specification details, refer to the AMWP8-8100L specification sheet and the vertical mast lifts documentation.
Sourcing Guide (FAQ)
What is the maximum working height of the AMWP8-8100L?
The max. working height is 7.60 m / 24 ft 11 in.
What is the safe working load?
The safe working load is 227 kg / 500 lb, and the S.W.L on extension is 113 kg / 249 lb.
What type of battery does the AMWP8-8100L use?
It uses a lead-acid maintenance-free battery rated 2×12V/115Ah. The source data lists the lithium battery option as “/”.
Is the AMWP8-8100L suitable for indoor use?
Yes. It is described as oil-free and all-electric with no noise, zero emission and no pollution, making it suitable for indoor work. With 2 occupants rated for indoor use, it is designed for indoor operation.
What motors are installed on the AMWP8-8100L?
The driving motor is 2×24VAC/0.68 kW, and the lifting motor is 24VDC/1.4 kW.
Summary
The AMWP8-8100L oil-free all-electric vertical lift combines a 7.60 m working height, 227 kg safe working load and a 0.80 m slim width in a maintenance-free, low-noise design. With brushless DC motors and a 2×12V/115Ah maintenance-free battery, it is positioned for indoor vertical access tasks where zero-emission and flexible movement are priorities.
