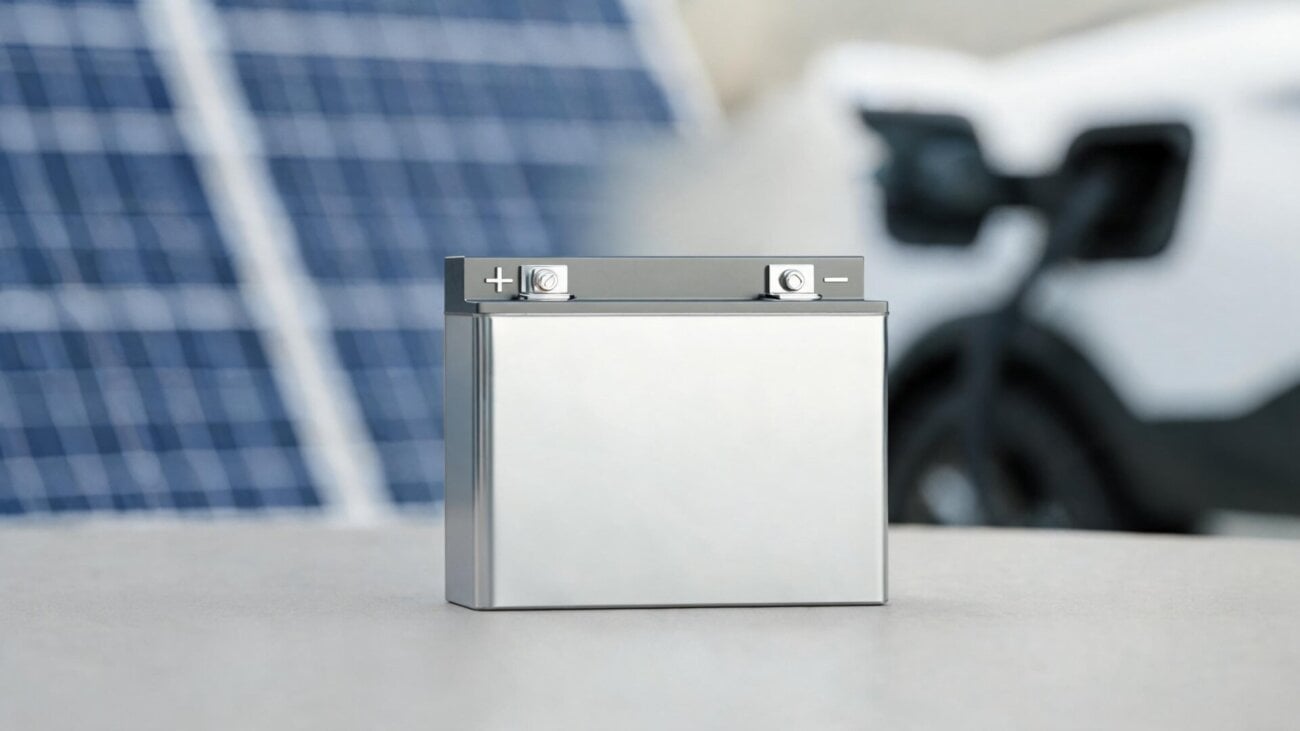

The Road to Higher Energy Density: LFP Battery Progress and Future Outlook – article cover image
News
by 2026-07-04

The Road to Higher Energy Density: LFP Battery Progress and Future Outlook

If you’ve been following electric vehicles (EVs) or renewable energy storage, you’ve probably heard a lot about lithium iron phosphate (LFP) batteries. Once dismissed as heavy and low-energy, LFP batteries have undergone a remarkable transformation. In this article, I’ll walk you through the amazing progress they’ve made in the last five years, explain the key technologies behind the jump, and share what experts expect for the next five years. By the end, you’ll have a clear picture of where LFP batteries are headed and why they matter for our clean energy future.

The Past Five Years (2020–2025): A Remarkable Leap

Let’s start with the numbers. In 2020, the best LFP battery packs delivered an energy density of around 150–170 Wh/kg at the cell level. By 2025, that figure has risen to 200–230 Wh/kg for leading manufacturers like CATL and BYD. This represents an increase of more than 30% in just five years—an impressive pace for battery chemistry.

Here’s a quick timeline of key milestones:

  • 2020: Typical LFP cells: 150–160 Wh/kg. Dominant in Chinese city EVs and stationary storage.
  • 2021: CATL launches the first generation of its “cell-to-pack” (CTP) technology, boosting pack density to 180 Wh/kg.
  • 2022: BYD introduces the Blade Battery, achieving 180–190 Wh/kg cell density while passing nail penetration tests.
  • 2023: CATL’s third-generation CTP pushes cell density to 200 Wh/kg; mass production begins.
  • 2024–2025: Multiple manufacturers announce cells reaching 220–230 Wh/kg, with some lab prototypes hitting 240 Wh/kg.

This progress hasn’t been a simple straight line. It involved innovations in materials, electrode design, and system architecture. Let’s break down what actually changed.

Key Drivers of the Density Increase

1. Cell-to-Pack (CTP) Technology

Traditional battery packs have many modules that add weight and take up space. CTP skips the module step, arranging cells directly into the pack. This boosts the volumetric and gravimetric density by 10–20%. CATL and BYD have been pioneers here.

2. Electrode Engineering

Manufacturers learned to pack more active material into the same electrode area. Using higher-loading coatings and advanced calendering processes, they increased the thickness of the electrode coatings without cracking. This directly raises the energy per gram.

3. Doping and Coatings

Adding tiny amounts of elements like manganese or aluminum to the LFP crystal structure (called doping) can improve conductivity and allow faster lithium-ion movement. Ultrathin carbon coatings also reduce resistance. These tweaks don’t change the chemistry fundamentally, but they make it work better.

4. Larger Cell Formats

From small cylindrical cells to larger prismatic or pouch cells, bigger formats mean less inactive material (such as casing and terminals) per unit of energy. The BYD Blade Battery is a great example—long, thin cells that pack tightly together.

5. Improved Manufacturing

Cutting-edge factories with better dry rooms, laser welding, and automated stacking reduce defects and allow tighter tolerances. Higher consistency leads to better performance and longer cycle life.

The Next Five Years (2025–2030): What to Expect

Now, let’s look into the crystal ball. Battery experts from universities, manufacturers, and government labs have published roadmaps. Here’s a consensus view of what’s coming:

Near-Term (2025–2027): Reaching 250 Wh/kg

By 2027, we should see LFP cells hitting 240–250 Wh/kg in mass production. This will come from further refinements: even thinner lithium-ion pathways, better electrode uniformity, and optimized pack structures. Some companies are working on “cell-to-chassis” integration, which merges the battery with the vehicle’s frame, saving even more weight.

Mid-Term (2028–2030): Pushing 300 Wh/kg?

Forecasts vary, but many expect LFP cells to approach 280–300 Wh/kg by 2030. This would require more radical changes, such as:

  • Silicon-doped anodes: Adding a small percentage of silicon (which holds more lithium) to the graphite anode can boost capacity by 20–30%. LFP cells with silicon-anodes are already in lab testing.
  • Single-crystal cathodes: Instead of agglomerates of tiny LFP particles, single-crystal particles can reduce internal resistance and allow higher voltage operation.
  • Dry electrode coating: Eliminating solvents in the coating process (Tesla’s approach) can reduce costs and enable thicker, more uniform electrodes.

Projected Energy Density Timeline

Here’s a rough table based on industry roadmaps (cell-level data):

  • 2025: 200–230 Wh/kg
  • 2026: 220–240 Wh/kg
  • 2027: 240–260 Wh/kg
  • 2028: 260–280 Wh/kg
  • 2029–2030: 280–300 Wh/kg

Of course, these are optimistic but plausible. Not every manufacturer will reach these numbers, and real-world pack densities will be 10–20% lower due to casing and thermal management. But the trend is clear: LFP is narrowing the gap with nickel-rich NMC or NCA chemistries, while remaining safer and cheaper.

Challenges and Opportunities

Safety and Cycle Life

Higher density can sometimes reduce safety margins. LFP is inherently safer than other chemistries, but pushing density too far might increase the risk of internal short circuits. Excellent thermal management and advanced separators will be crucial.

Cost vs. Performance

LFP’s main advantage is low cost (no cobalt, abundant iron and phosphate). As density rises, manufacturing complexity may increase costs slightly, but volume production should keep prices very competitive. In many applications (city EVs, short-range trucks, grid storage), LFP is already the cheapest option.

Competition from Solid-State and LMFP

Solid-state batteries promise even higher densities (400+ Wh/kg) but remain expensive and difficult to scale. LMFP (lithium manganese iron phosphate) is a variation that boosts voltage and thus energy density, but it’s still in early commercialization. LFP will likely coexist with these technologies for years.

Conclusion

In just five years, LFP batteries have shed their reputation as “low-energy” cells. Through clever engineering, they’ve gained 30–40% in energy density and are well on their way to rivaling mid-range NMC batteries. Looking ahead, the next half-decade promises even more progress, with 300 Wh/kg within reach by 2030. For consumers, this means EVs with 300–400 miles of range at affordable prices. For the grid, it means reliable, safe, long-duration storage. The road to higher energy density for LFP is not just about science—it’s about a sustainable, electrified future that everyone can access.
