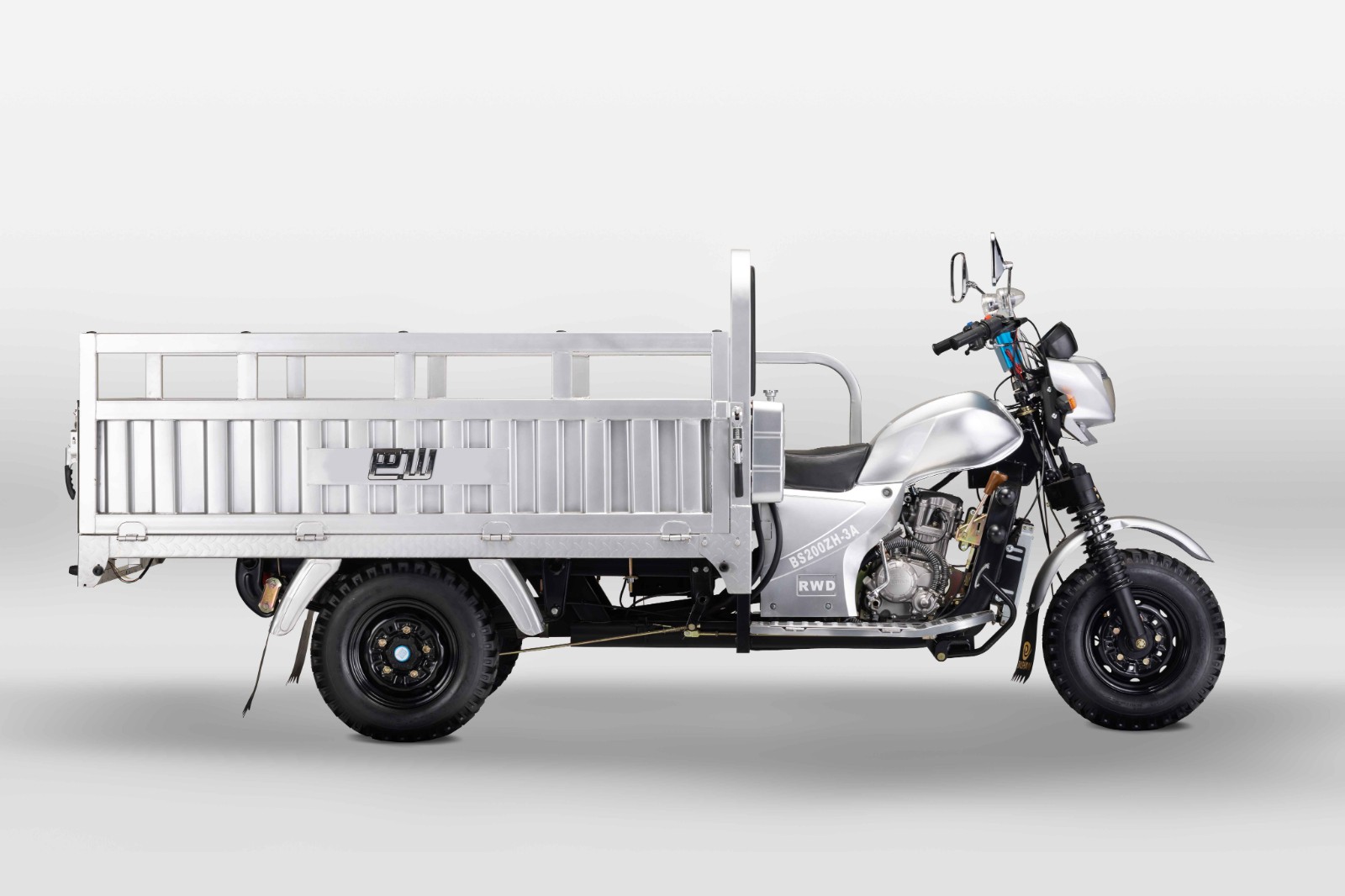

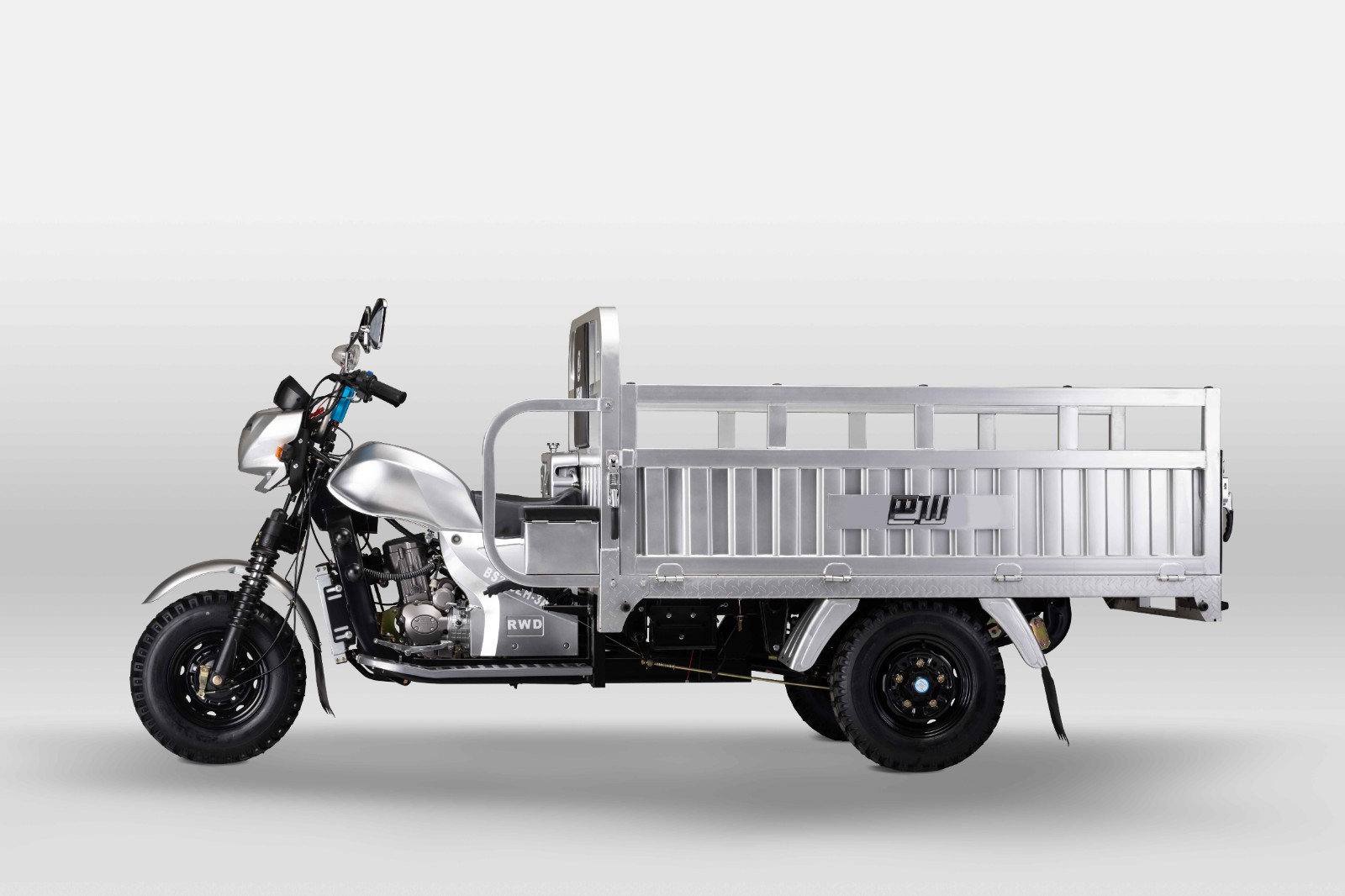

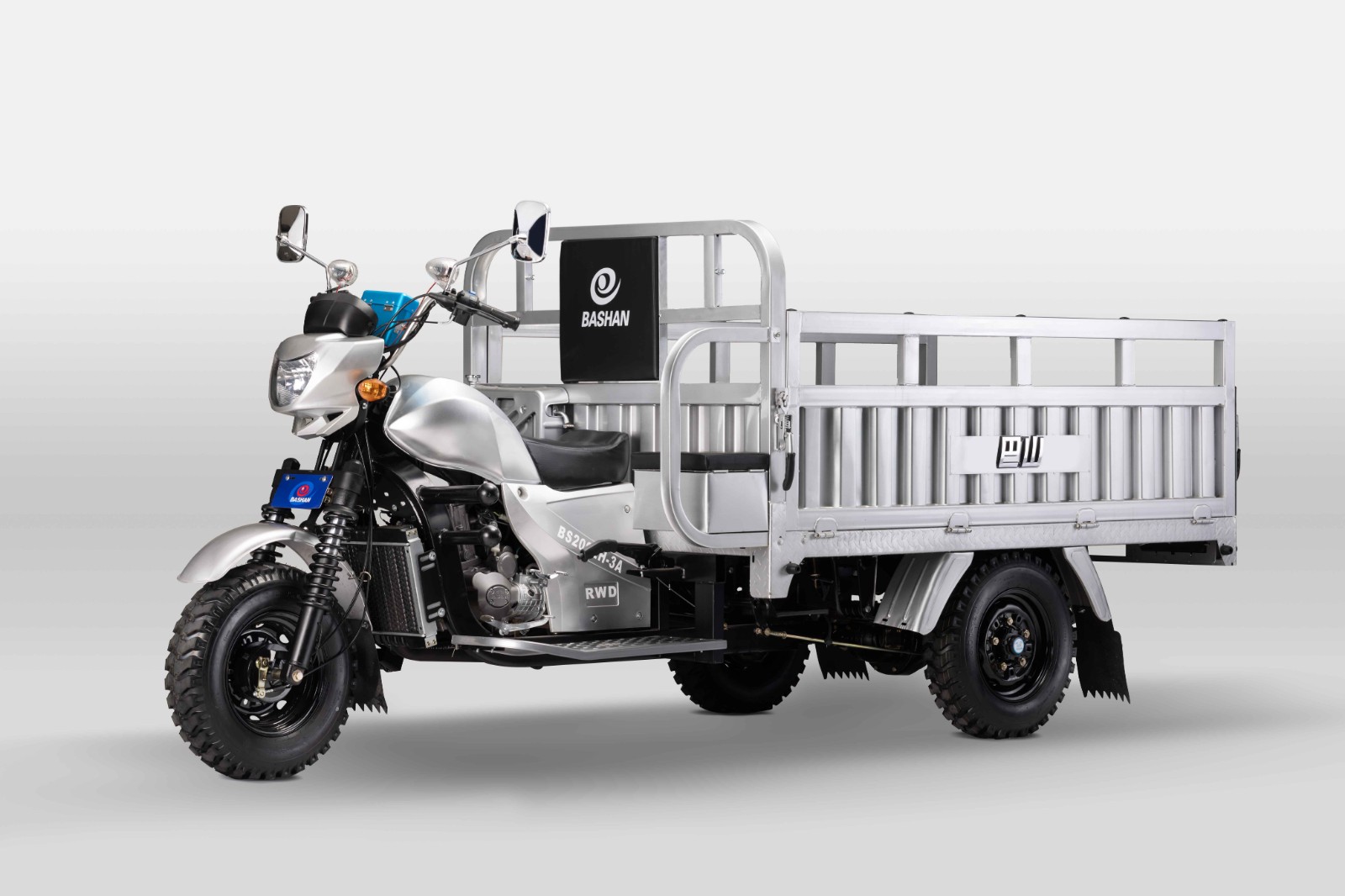

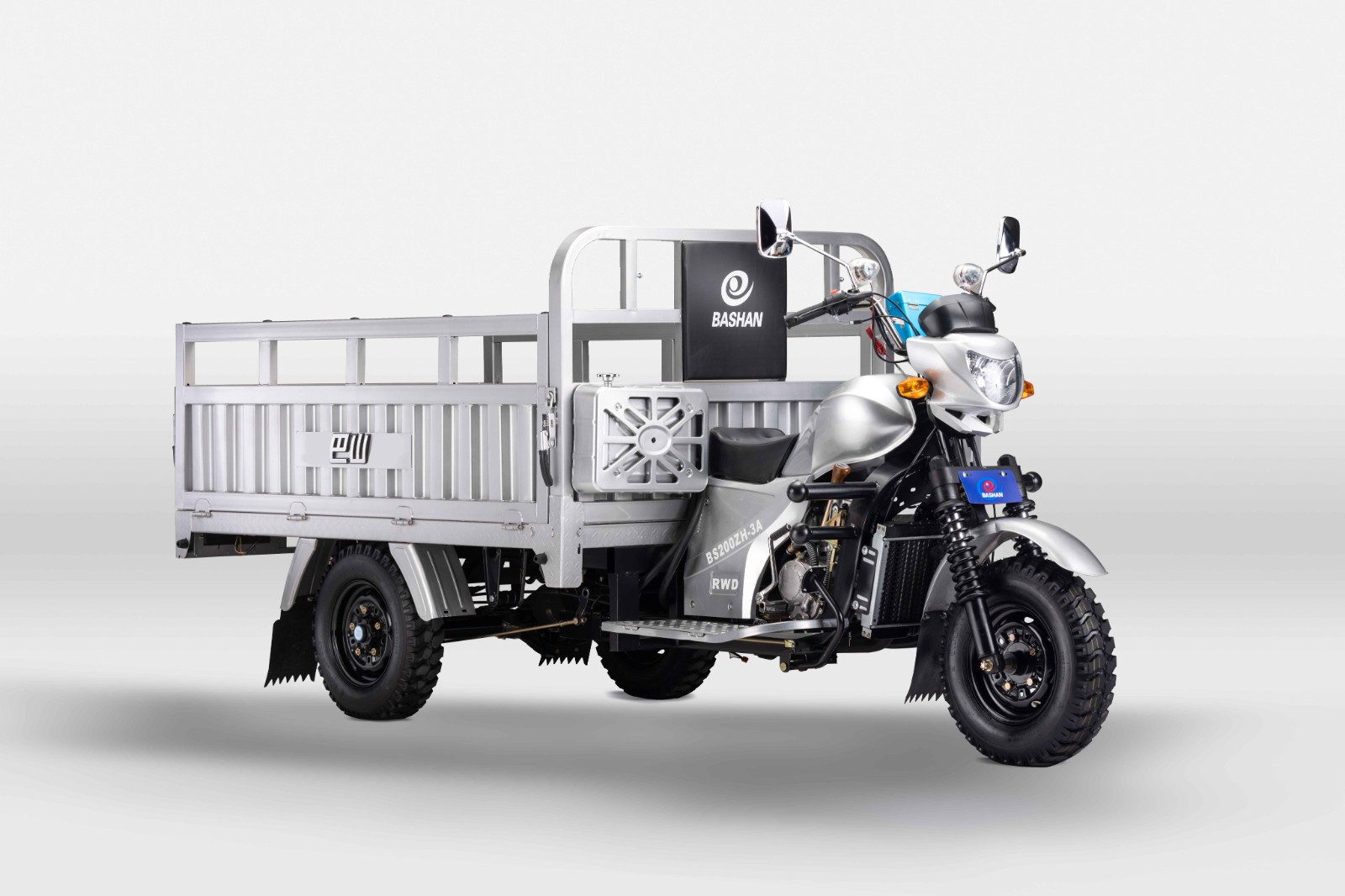

Bashan BS200ZH-3A 200cc Water-Cooled 3-Wheeler Cargo Motorcycle
The Bashan BS200ZH-3A is a 196.98cc water-cooled 3-wheeler built for heavy hauling. It offers an 800kg maximum load, 5.0-12 tires, mechanical drum brakes and an 18L fuel tank. A practical cargo motorcycle for transport, farm and utility work.
Product Overview
The Bashan BS200ZH-3A is a three-wheeled motorcycle engineered for cargo and utility transport. It combines a single-cylinder, four-stroke, water-cooled engine with a robust chassis and an 800 kg maximum load capacity, making it suitable for moving goods and equipment in demanding environments.
With a wheelbase of 2450 mm, ground clearance of 165 mm and a net weight of 475 kg, this 3-wheeler balances stability with maneuverability. The 196.98 mL displacement engine produces a maximum power of 10.3 kW at 7500 r/min and a maximum torque of 14.2 N·m at 6000 r/min, paired with an International 5-gear shift mode for flexible power delivery.
Key Features
- Water-cooled engine: Single cylinder, 4-stroke, water-cooled design for consistent thermal management during extended use.
- High load capacity: Maximum load of 800 kg supports heavy cargo and utility applications.
- Durable braking: Mechanical brake drum system for reliable stopping power.
- Large fuel tank: 18 L capacity extends operating range between refueling stops.
- Flexible starting: Electric and kick start options for convenience and backup.
- 5-speed transmission: International 5-gear shift mode for adaptable performance across varying loads and terrains.
- Sturdy tires: 5.0-12 front and rear tire size for traction and stability.
Applications
- Cargo and goods transport in urban and rural settings
- Agricultural and farm utility tasks
- Construction and industrial material movement
- General-purpose three-wheeler transport where a robust load carrier is required
Technical Specifications
| Model | BS200ZH-3A |
| Dimensions (mm) | 3650 × 1430 × 1450 |
| Wheel base (mm) | 2450 |
| Ground clearance (mm) | 165 |
| Net weight (kg) | 475 |
| Max load (kg) | 800 |
| Brake type | Mechanical brake drum |
| Tyre size (front/rear) | 5.0-12 |
| Max speed (km/h) | 60 |
| Economic fuel consumption (L/100km) | 6.5 |
| Engine type | Single cylinder, 4-stroke, water cooled |
| Displacement (mL) | 196.98 |
| Max power (kW/r/min) | 10.3/7500 |
| Max torque (N·m/r/min) | 14.2/6000 |
| Start | Electric/kick |
| Gear shift mode | International 5 gear |
| Fuel tank capacity (L) | 18 |
| Container loading | 39PCS/40HQ |
Why Choose This Product?
The BS200ZH-3A offers a practical combination of load capacity, engine performance and durability. Its water-cooled engine and 5-speed transmission support sustained operation under load, while the 800 kg maximum load and 18 L fuel tank make it a capable partner for cargo and utility transport. The mechanical brake drum system and 5.0-12 tires contribute to reliable handling in varied conditions.
Manufacturer Recommendation
Bashan has a history in motorcycle, tricycle and related vehicle manufacturing. The BS200ZH-3A is a reflection of that experience, built to meet the demands of three-wheeler transport. Buyers seeking a robust and functional cargo 3-wheeler can consider this model for its stated specifications and design.
Sourcing Guide (FAQ)
What is the engine type of the BS200ZH-3A?
It uses a single-cylinder, 4-stroke, water-cooled engine with a displacement of 196.98 mL.
What is the maximum load capacity?
The maximum load is 800 kg.
What are the tire sizes?
The front and rear tire size is 5.0-12.
What is the fuel tank capacity?
The fuel tank capacity is 18 L.
How many units can fit in a 40HQ container?
Container loading is 39PCS/40HQ.
Summary
The Bashan BS200ZH-3A is a water-cooled 200cc 3-wheeler designed for cargo and utility transport. With an 800 kg maximum load, 196.98 mL engine displacement, 5-speed transmission and 18 L fuel tank, it addresses the needs of businesses and operators requiring a dependable load carrier. Its specifications support use in transport, agriculture and light industrial applications, making it a practical choice in the three-wheeler category.
This product is supplied directly by the manufacturer’s factory. Click the supplier inquiry button below to get a quote. ↓
Supplier & Author Profile
- CHONGQING BASHAN MOTORCYCLE MANUFACTURING CO. LTD.VerifiedMotorcycle and engine manufacturer based in Chongqing, China
- Chongqing Bashan Motorcycle Manufacturing Co., Ltd. is a Chinese manufacturer of two-wheel motorcycles, three-wheel motorcycles, ATVs and motorcycle engines. Founded in 2002, the company operates a production base in Chongqing with an annual capacity of 600,000 motorcycles and 1,000,000 engines, and
Latest entries
| Engine Type | single cylinder,4 stroke,water cooled |
|---|---|
| Displacement | 196.98 mL |
| Max Power | 10.3/7500 kW/r/min |
| Max Torque | 14.2/6000 N.m/r/min |
| Start | Electric/kick |
| Gear Shift Mode | International 5gear |
| Fuel Tank Capacity | 18 L |
| Brake Type | Mechanical brake drum |
| Tyre Size | 5.0-12 |
| Wheel Base | 2450 mm |
| Ground Clearance | 165 mm |
| Max Speed | 60 km/h |
| Economic Fuel Consumption | 6.5 L/100km |
| Container Loading | 39PCS/40HQ |
| Engine Type | single cylinder,4 stroke,water cooled |
|---|---|
| Displacement | 196.98 mL |
| Max Power | 10.3/7500 kW/r/min |
| Max Torque | 14.2/6000 N.m/r/min |
| Start | Electric/kick |
| Gear Shift Mode | International 5gear |
| Fuel Tank Capacity | 18 L |
| Brake Type | Mechanical brake drum |
| Tyre Size | 5.0-12 |
| Wheel Base | 2450 mm |
| Ground Clearance | 165 mm |
| Max Speed | 60 km/h |
| Economic Fuel Consumption | 6.5 L/100km |
| Container Loading | 39PCS/40HQ |
| Stock Status | In stock |
- Store Name: CHONGQING BASHAN MOTORCYCLE MANUFACTURING CO. LTD.
- Email: [email protected]
- Phone: 023-89808383
Company Overview
Chongqing Bashan Motorcycle Manufacturing Co., Ltd. is a Chinese motorcycle manufacturer founded in July 2002. The company is engaged in the research, development, manufacturing and sales of two-wheel motorcycles, three-wheel motorcycles, ATVs and motorcycle engines.
Manufacturing Capabilities
The company operates a production base in the Huaxi Industrial Park in Chongqing, covering an area of over 350 mu. It has an annual production capacity of 600,000 motorcycles and 1,000,000 motorcycle engines. The facility is equipped with automated production lines, packaging lines and comprehensive testing equipment.
Products
- Two-wheel motorcycles
- Three-wheel motorcycles
- ATVs (beach vehicles)
- Motorcycle engines
The Bashan brand includes more than 100 motorcycle models with a variety of designs and performance features for different markets.
Quality and Certifications
The company has passed ISO9001 international quality system certification, China CCC compulsory certification, and production access verification. It operates a technical center recognized as a Chongqing municipal-level enterprise technology center.
Frequently Asked Questions
What is Bashan BS200ZH-3A 200cc Water-Cooled 3-Wheeler Cargo Motorcycle used for?
The Bashan BS200ZH-3A is a 196.98cc water-cooled 3-wheeler built for heavy hauling. It offers an 800kg maximum load, 5.0-12 tires, mechanical drum brakes and an 18L fuel tank. A practical cargo motorcycle for transport, farm and utility work.
What are the key technical parameters of Bashan BS200ZH-3A 200cc Water-Cooled 3-Wheeler Cargo Motorcycle?
Key listed parameters include: Engine Type: single cylinder,4 stroke,water cooled; Displacement: 196.98 mL; Max Power: 10.3/7500 kW/r/min; Max Torque: 14.2/6000 N.m/r/min; Start: Electric/kick; Gear Shift Mode: International 5gear; Fuel Tank Capacity: 18 L; Brake Type: Mechanical brake drum.
Can Bashan BS200ZH-3A 200cc Water-Cooled 3-Wheeler Cargo Motorcycle be customized?
Customization depends on the supplier and production requirements. Use the quote or question form on this product page to confirm specifications, branding, packaging, certificates, MOQ, and lead time.
How can I request a quotation for Bashan BS200ZH-3A 200cc Water-Cooled 3-Wheeler Cargo Motorcycle?
Use the Request a Quote or Ask a Question area on this product page. Include quantity, destination country, required specifications, target delivery time, and any certification or customization needs.
What should I confirm before ordering?
Confirm the final technical specification, unit price, MOQ, shipping method, warranty terms, compliance requirements, and production lead time with the supplier before placing an order.
