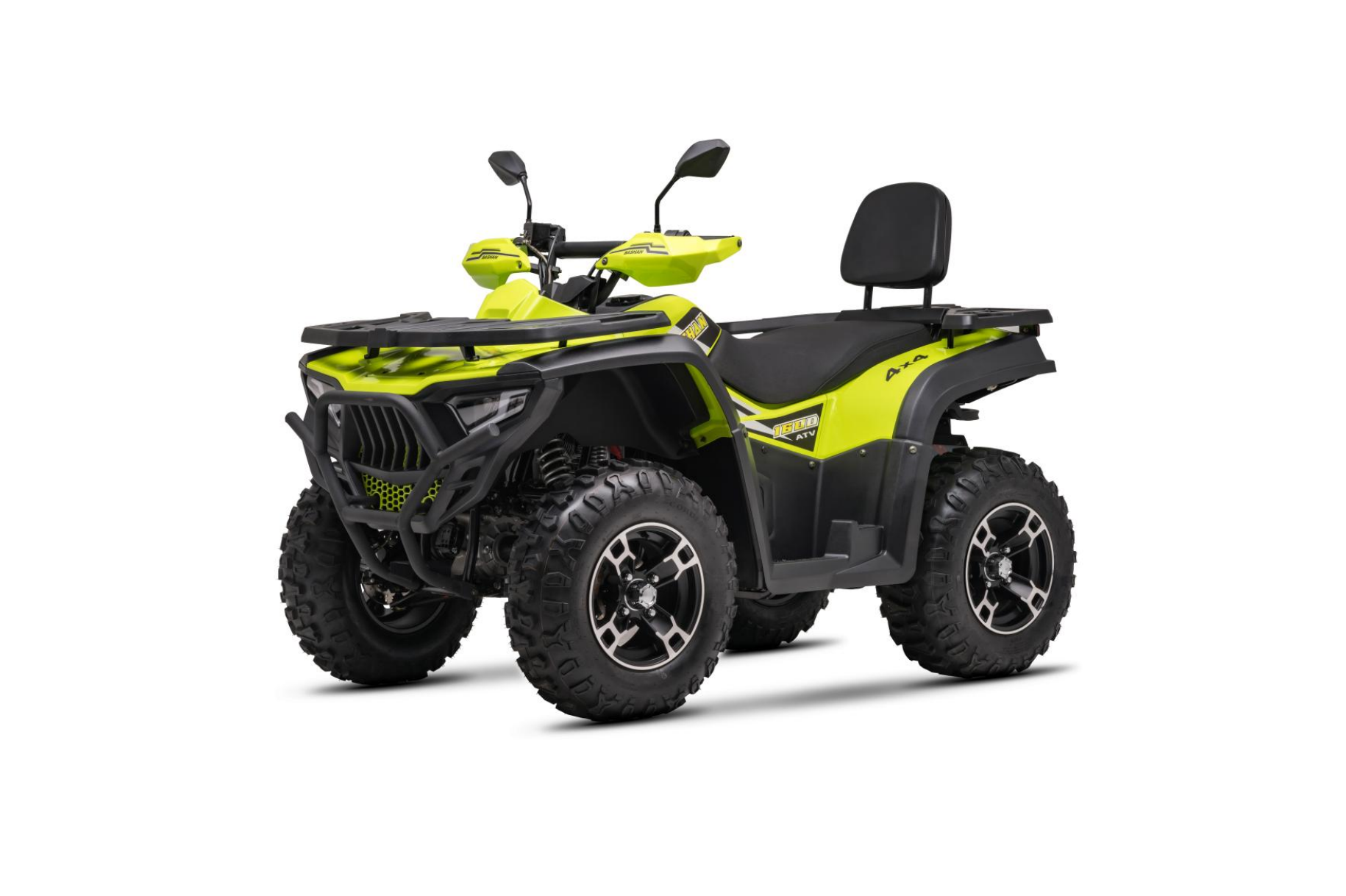

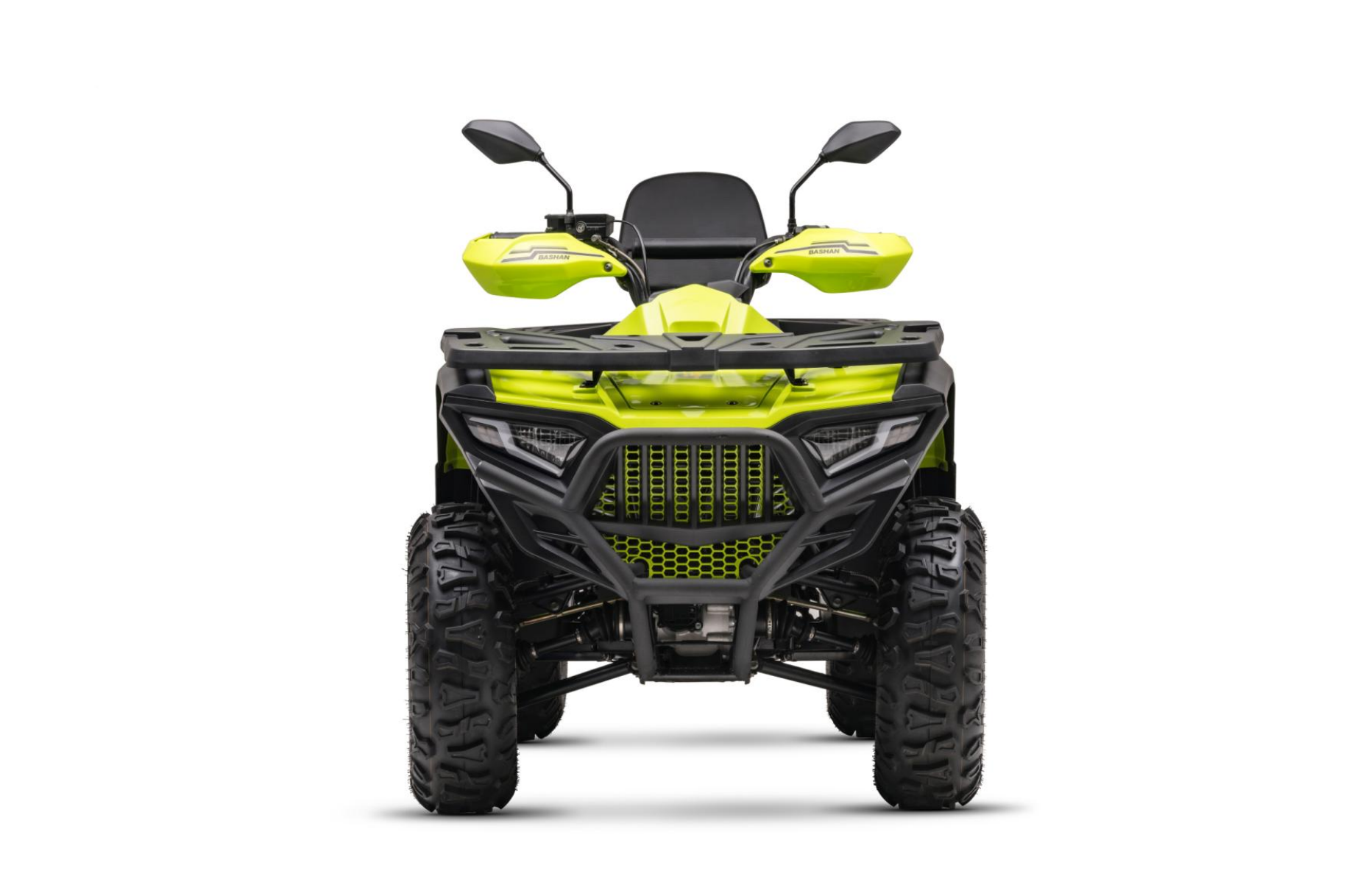

Bashan BS160DAU 4×4 ATV Utility Quad
The Bashan BS160DAU is a four-wheel-drive ATV built for utility and off-road use. It offers a 250 mm ground clearance, 350 kg net weight, 180 kg max load and an 80 km/h top speed. Front and rear disc brakes plus 24-inch tyres provide dependable control across working and recreational terrain.
Product Overview
The Bashan BS160DAU is a four-wheel-drive ATV designed for utility and off-road applications. It combines a compact 2040 × 1100 × 1250 mm footprint with a 1240 mm wheelbase, a high 880 mm seat and 250 mm of ground clearance for confident handling over uneven ground. Front and rear disc brakes, 24-inch tyres and a 180 kg maximum load support working and recreational use where traction and control matter.
Key Features
- Four-wheel drive for traction on varied terrain
- Disc/Disc braking at front and rear for consistent stopping power
- 250 mm ground clearance to clear obstacles
- 880 mm high seat for an elevated riding position
- 24 × 8-12 front and 24 × 10-12 rear tyres for a stable footprint
- 350 kg net weight with a 180 kg max load capacity
- 80 km/h maximum speed for efficient travel between work areas
Applications
- Utility transport on farms and rural properties
- Off-road recreational riding
- General site access over mixed surfaces
- Light-duty hauling within the stated 180 kg load limit
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions (mm) | 2040 × 1100 × 1250 |
| Wheel base (mm) | 1240 |
| High seat (mm) | 880 |
| Ground clearance (mm) | 250 |
| Net weight (kg) | 350 |
| Max load (kg) | 180 |
| Brake type | Disc/Disc |
| Tyre size (front/rear) | 24 × 8-12 / 24 × 10-12 |
| Max speed (km/h) | 80 |
| Tyre pressure (front/rear) kPa | 280/280 |
| Drive mode | Four-wheel drive |
Why Choose This Product?
The BS160DAU pairs four-wheel drive and 250 mm of ground clearance with front and rear disc brakes, making it a practical choice for riders who need a stable ATV for utility tasks and off-road travel. Its 180 kg load limit and 80 km/h top speed support efficient movement across farms, job sites and trail environments.
Manufacturer Recommendation
Bashan’s product range covers motorcycles, tricycles, ATVs, tillers, engines and general machinery. The BS160DAU sits within that established ATV lineup, giving buyers a model that can be evaluated alongside the wider Bashan portfolio when matching an ATV to specific working or recreational requirements.
Sourcing Guide (FAQ)
What is the drive mode of the BS160DAU?
The BS160DAU uses four-wheel drive.
What is the maximum speed of the Bashan BS160DAU?
The maximum speed is 80 km/h.
What tyre sizes does the BS160DAU use?
Front tyres are 24 × 8-12 and rear tyres are 24 × 10-12, with a recommended pressure of 280/280 kPa.
How much load can the BS160DAU carry?
The maximum load is 180 kg, and the net weight is 350 kg.
What brake system does the BS160DAU have?
It uses disc brakes at both the front and the rear.
Summary
The Bashan BS160DAU is a four-wheel-drive ATV with a 2040 × 1100 × 1250 mm body, 250 mm ground clearance and front and rear disc brakes. With an 80 km/h top speed and a 180 kg load capacity, it fits utility work and off-road riding where a compact, stable quad is needed.
This product is supplied directly by the manufacturer’s factory. Click the supplier inquiry button below to get a quote. ↓
Supplier & Author Profile
- CHONGQING BASHAN MOTORCYCLE MANUFACTURING CO. LTD.VerifiedMotorcycle and engine manufacturer based in Chongqing, China
- Chongqing Bashan Motorcycle Manufacturing Co., Ltd. is a Chinese manufacturer of two-wheel motorcycles, three-wheel motorcycles, ATVs and motorcycle engines. Founded in 2002, the company operates a production base in Chongqing with an annual capacity of 600,000 motorcycles and 1,000,000 engines, and
Latest entries
| Wheel base | 1240 mm |
|---|---|
| High seat | 880 mm |
| Ground clearance | 250 mm |
| Max load | 180 kg |
| Brake type | Disc/Disc |
| Tyre size | 24×8-12/24×10-12 |
| Max speed | 80 km/h |
| Tire pressure | 280/280 kPa |
| Wheel base | 1240 mm |
|---|---|
| High seat | 880 mm |
| Ground clearance | 250 mm |
| Max load | 180 kg |
| Brake type | Disc/Disc |
| Tyre size | 24×8-12/24×10-12 |
| Max speed | 80 km/h |
| Tire pressure | 280/280 kPa |
| Stock Status | In stock |
- Store Name: CHONGQING BASHAN MOTORCYCLE MANUFACTURING CO. LTD.
- Email: [email protected]
- Phone: 023-89808383
Company Overview
Chongqing Bashan Motorcycle Manufacturing Co., Ltd. is a Chinese motorcycle manufacturer founded in July 2002. The company is engaged in the research, development, manufacturing and sales of two-wheel motorcycles, three-wheel motorcycles, ATVs and motorcycle engines.
Manufacturing Capabilities
The company operates a production base in the Huaxi Industrial Park in Chongqing, covering an area of over 350 mu. It has an annual production capacity of 600,000 motorcycles and 1,000,000 motorcycle engines. The facility is equipped with automated production lines, packaging lines and comprehensive testing equipment.
Products
- Two-wheel motorcycles
- Three-wheel motorcycles
- ATVs (beach vehicles)
- Motorcycle engines
The Bashan brand includes more than 100 motorcycle models with a variety of designs and performance features for different markets.
Quality and Certifications
The company has passed ISO9001 international quality system certification, China CCC compulsory certification, and production access verification. It operates a technical center recognized as a Chongqing municipal-level enterprise technology center.
Frequently Asked Questions
What is Bashan BS160DAU 4x4 ATV Utility Quad used for?
The Bashan BS160DAU is a four-wheel-drive ATV built for utility and off-road use. It offers a 250 mm ground clearance, 350 kg net weight, 180 kg max load and an 80 km/h top speed. Front and rear disc brakes plus 24-inch tyres provide dependable control across working and recreational terrain.
What are the key technical parameters of Bashan BS160DAU 4x4 ATV Utility Quad?
Key listed parameters include: Wheel base: 1240 mm; High seat: 880 mm; Ground clearance: 250 mm; Max load: 180 kg; Brake type: Disc/Disc; Tyre size: 24×8-12/24×10-12; Max speed: 80 km/h; Tire pressure: 280/280 kPa.
Can Bashan BS160DAU 4x4 ATV Utility Quad be customized?
Customization depends on the supplier and production requirements. Use the quote or question form on this product page to confirm specifications, branding, packaging, certificates, MOQ, and lead time.
How can I request a quotation for Bashan BS160DAU 4x4 ATV Utility Quad?
Use the Request a Quote or Ask a Question area on this product page. Include quantity, destination country, required specifications, target delivery time, and any certification or customization needs.
What should I confirm before ordering?
Confirm the final technical specification, unit price, MOQ, shipping method, warranty terms, compliance requirements, and production lead time with the supplier before placing an order.
